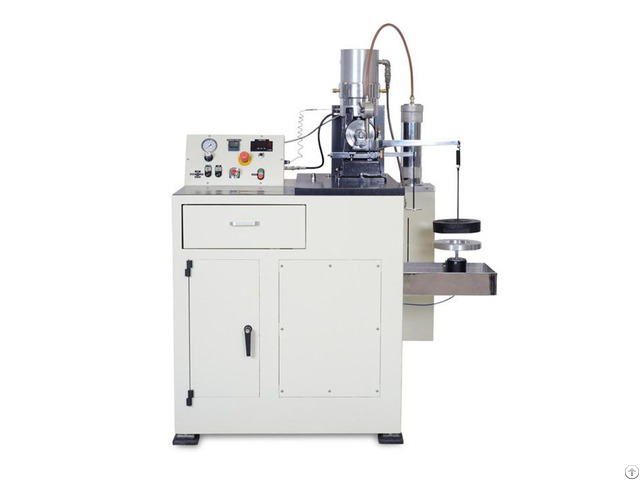

Timken Extreme Pressure Friction Testing Machine - China
price: contact company for price
The extreme pressure friction testing machine mainly consists of a main frame, a spindle transmission system, a test force loading mechanism, a lubricant supply and recovery mechanism, a sample fixture, and a control and measurement sensing system.
Under the precise closed-loop control of the computer measurement and control system, the testing machine can achieve uniform and constant loading of test force, precise rotation of the spindle, and precise oil supply.
Standards
(1)ASTM D 2509: Standard Test Method for Measurement of Load-Carrying Capacity of Lubricating Grease (Timken Method) (2)ASTM D 2782: Standard Test Method for Measurement of Extreme-Pressure Properties of Lubricating Fluids (Timken Method) (3)GB/T3142: Standard test method for determination of load-carrying capacity of lubricants—Four-ball method (4)SH/T0204: Test Method for Determining Anti-wear Properties of Lubricating Grease (Four-ball Machine Method)
Parameters
Description Details
Test load 10.000 N
Automatic loading 0.9 to 1.3 kg/s (pneumatic)
Speed 1 – 800 rpm, variable
Temperature up to 120°C
Grease feeder 45 g/min
Feeder 3.8 liters (circulation pump and heater)
Test sample (block) 123 mm x 123 mm x 123 mm
Test sample (ring) 12 mm x 12 mm x 12 mm (diameter) x 12 mm (width)
