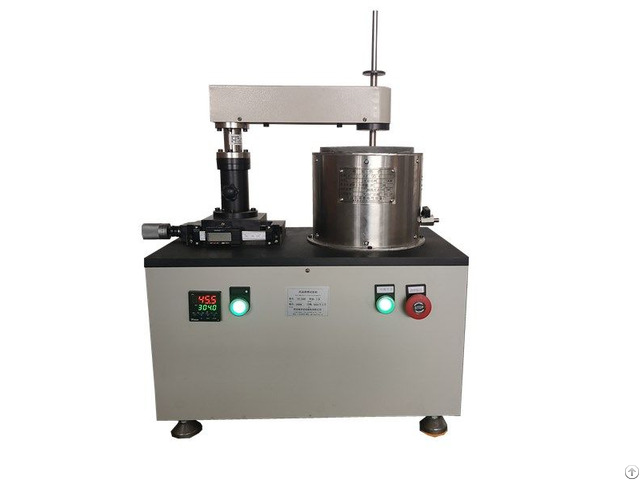

Computer Controlled High Temperature Friction Tester - China

This High-Temperature Friction Tester is mainly used for tribological and physical-chemical testing of metals, non-metals, plastics, glass, ceramics, rubber, and other materials.

It can test friction and wear properties under a certain contact pressure and variable environmental conditions, such as vacuum, controlled gas atmosphere, or high-temperature environments.

The friction force measurement has high precision.

With additional attachments, the machine can perform rolling, sliding, or combined rolling-sliding friction tests.

It features a stepless speed regulation system, suitable for both low-speed and high-speed conditions to evaluate lubricants, metals, plastics, coatings, rubber, ceramics, etc.

Examples of testing include pin-on-disk friction, ball-on-disk lubrication performance, and thrust washer wear performance.

All test parameters are computer-controlled, allowing measurement of friction force, calculation of friction coefficient, real-time data acquisition, and recording of friction force–time and friction coefficient–time curves.

Technical Specifications

No.

Item Details

1 Test force range 150–2000 g

2 Test force loading method Weight loading

3 Maximum spindle torque 1.4 N·m

4 Friction force measurement range 0–10 N

5 Dynamic friction force display accuracy 0.001 N

6 Stepless spindle speed range 1–3000 r/min

7 Spindle speed error Better than ±1%

8 Friction radius adjustment range 1–30 mm

9 Pin/ball specimen clamping range 3–6 mm

10 Friction disk size 10–60 mm, thickness 1–20 mm

11 Vertical loading lift range 0–50 mm

12 Temperature measurement method Thermocouple

13 Environmental atmosphere Can be filled with inert gases such as N₂, Ar

14 Temperature heating range Room temperature–1000℃

15 Temperature measurement range 0–1000℃

16 Temperature measurement error ±2℃

17 Test time display and control range 1 s–9999 min

18 Test rotation and control range 0–999.999 r

19 Total machine power 2 kW

20 Main unit dimensions 500 × 300 × 600 mm

21 Main unit weight 70 kg

22 Operating voltage AC 220 V, 50 Hz
