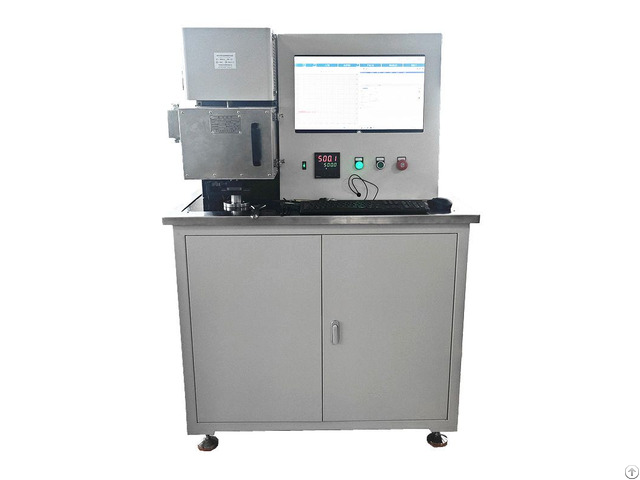

Reciprocating Friction And Wear Tester - China

The Reciprocating Friction and Wear Tester operates by applying a specified normal contact load while the specimen performs a linear reciprocating motion over a set stroke length.

It features a stepless speed adjustment system, allowing testing at low or high speeds.

The tester evaluates the friction and wear performance of lubricants, metals, plastics, coatings, rubber, ceramics, and other materials.

Typical test configurations include pin-on-disk, ball-on-disk, and similar forms.

Applications

Material Performance Evaluation: Measure friction and wear behavior of metals, polymers, composites, and coatings.

Lubricant Testing: Assess effectiveness of oils, greases, and solid lubricants under reciprocating motion.

Surface Coating and Treatment Analysis: Evaluate durability and adhesion of coatings, films, and surface-hardened layers.

Component Simulation: Test mechanical parts like pistons, seals, bearings, and sliding elements under realistic reciprocating conditions.

Research and Development: Support tribology studies, material optimization, and wear mechanism analysis.

Quality Control: Ensure consistent material and component performance during production.

Extreme Condition Testing: Examine behavior under varying load, speed, temperature, and environmental conditions.

Technical Specifications

No.

Parameter Specification

1 Test Force Range 0–2000 N

2 Test Force Working Range (Stepless) 0.5%–100%

3 Test Force Relative Error ≤ ±1%

4 Test Force Accuracy ±0.05 N

5 Automatic Load Rate 1–200 N/s

6 Long-term Test Force Error ≤ ±1%

7 Friction Force Measurement Range 0–500 N

8 Friction Force Relative Error ±1%

9 Friction Force Resolution 0.01 N

10 Specimen Size Range 0–70 mm (circular or square)

11 Friction Type Linear reciprocating

12 Reciprocating Stroke 0–30 mm

13 Reciprocating Frequency 0–10 Hz

14 Electric Furnace Heating Temperature Room temperature – 1200 ℃

15 Temperature Control Accuracy ±2 ℃

16 Pin Specimen Diameter 4–8 mm

17 Maximum Distance Between Spindle and Lower Disk ≥ 70 mm
