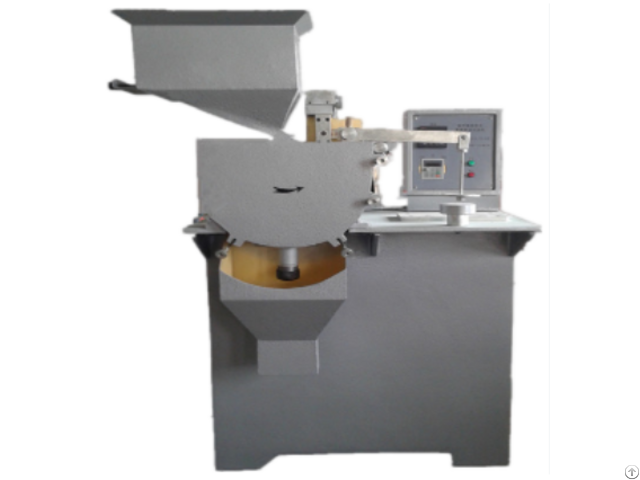

Dry Sand Rubber Wheel Wear Abrasion Tester - China

The dry sand rubber wheel abrasion tester is mainly used to test the abrasion resistance of materials.

Its working principle is to use a clockwise rotating rubber wheel to drive abrasive (such as quartz sand) to wear the sample, thereby evaluating the abrasion resistance of the material.

Standard

ASTM G65: Standard Test Method for Measuring Abrasion Using the Dry Sand/Rubber Wheel Apparatus JBT_7705: Test Method for Abrasive Wear with Loose Abrasive Grains – Rubber Wheel Method Dry and wet abrasive wear testing machines usually need to follow certain standards and specifications when testing.

Here are some common applicable standards: ASTM Standards: Standards developed by the American Society for Materials and Testing (ASTM) include content related to dry and wet abrasive wear testing.

For example, the ASTM G65 standard may specify specific methods and requirements for abrasive wear tests of dry-sand rubber wheels; The ASTM G105 standard may specify specific requirements for abrasion test methods for wet sand rubber and rubber wheels.

These standards specify parameters and requirements such as loading methods, abrasive types, test cycles, and data recording during the test process.

B Ash standard: China’s machinery industry standard (B Ash) may also contain content related to dry and wet abrasive wear tests.

For example, the JB/ 7705 standard specifies the rubber wheel method in the wear test method for loose abrasive particles, which can be used to evaluate the wear resistance of materials in dry sand environments.

In addition, JB/T 9396 and other standards may specify the size of the sample, fixture design and other specific requirements.

When conducting dry and wet sand abrasive wear tests, it should be ensured that the selected standards are consistent with the test purposes and requirements, and the test methods and steps specified in the standards are strictly operated.

At the same time, it is also necessary to pay attention to the calibration and maintenance of the testing machine to ensure the accuracy and reliability of the test results.

Parameters

Model Q-27

Maximum load 130 N

rubber tire turn clockwise

Rubber wheel speed 200 + 10 rpm

Rubber Wheel Diameter 228.6 mm

Rubber Wheel Hardness 60 (Shore hardness)

Size 57*25.5 * 6mm

Dimensions (L * W * H) 710*740*1600 (mm)

Weight 420kg
