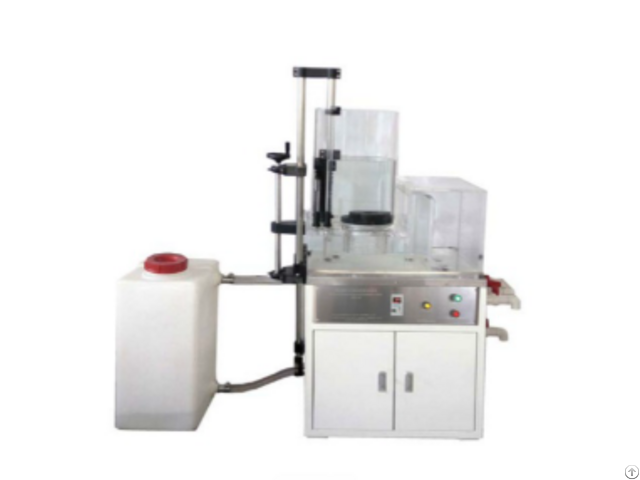

Geosynthetics Vertical Penetration Tester Iso 11058 - China

The geosynthetic material vertical permeability tester is a horizontal constant-head testing instrument designed and manufactured according to the requirements of the newly published “Test Procedures for Geosynthetic Materials in Highway Engineering (JTG E50-2006)” by the Ministry of Transport.

It is suitable for testing the vertical permeability performance of various permeable geotextiles and composite geotextiles under constant head conditions.

Application

Used to determine the vertical permeability of geotextile and its related products under constant water head method.

The water head of the instrument can be adjusted (0-300mm), and can maintain a stable water head, the instrument is designed to reduce the loss of water head, using a box structure.

Standard

ISO 11058: Geotextiles and geotextile-related products – Determination of water permeability characteristics normal to the plane, without load ASTM D4491: Standard Test Methods for Water Permeability of Geotextiles by Permittivity GB/T 15789-2016: Geotextiles and geotextile-related products – Determination of water permeability characteristics normal to the plane, without load SL/T 235-2012: Specification for Test and Measurement of Geosynthetics Parameters

Specification Details

Sample diameter 52mm, 100mm

Water head 0——300mm adjustable

Sample thickness 0.1——10mm

Dimensions (LxWxH) 1200x500x1440mm

Weight 170kg
