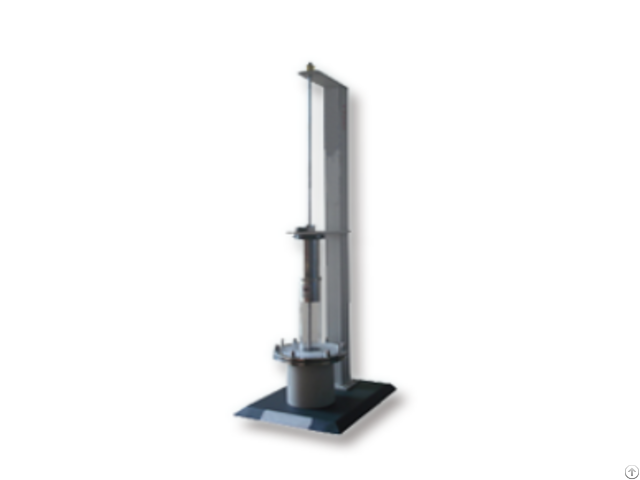

Geotextile Dynamic Puncture Testing Machine - China
price: contact company for price
The Geotextile Dynamic Puncture Testing Machine is used to test the resistance of various geotextile materials to penetration by a steel cone dropped from a fixed height, characterizing the geotextile material’s resistance to rockfall impact.
Application
It is used to test the penetration ability of various geomaterials to resist steel cones falling from a fixed height, so as to characterize the rock fall resistance performance of ten geomaterials.
Standard
JTG E50: Test Methods of Geosynthetics for Highway Engineering ISO/DIS 13433: Geosynthetics – Dynamic Perforation Test – Cone Drop Method (Draft International Standard) GB/T17630: Geosynthetics – Dynamic Perforation Test – Cone Drop Method Parameters
Specification Details
Clamping ring diameter 150 ± 0.5mm
Distance from steel cone tip to sample 500 ± 2mm
Stainless steel cone – cone angle 45°
Stainless steel cone – total mass 1000 ± 5g
Measuring cone mass 600 ± 5g
Overall size 435x575x1600mm
Company Contact:
- Posted By: Qinsun Instruments Co., LTD
- Phone: +8618501763615
- Address: Minhang District, Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com/
Published date: April 16, 2026
- Business Description: Qinsun Instrument focus on creative high quality textile testing instrument, with our powerful teamwork,constantly innovation, practical efficiency and excellent service, our mission is to supply our customers and distributors with the integrated solutions of lab testing.
