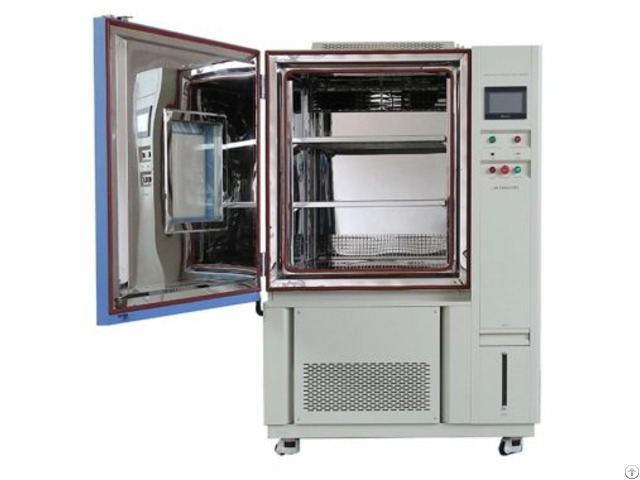

Humidity Chamber - China

Features and Benefits

1 - The humidity test chamber can realize long-term 85°C 85%RH test.

The automatic water inlet and water circulation system of the test chamber perfectly realizes the automatic test, which has high test efficiency and saves time。 2 - The controller of the humidity testing chamber has a multilingual interface, which is convenient for customers to operate and use.

Test data can be stored and downloaded.

3 - The benchtop humidity chamber has a large size and defoggable view window, so that the specimen can be clearly observed during the test.

It can also be equipped with a glass door, which is convenient for customers to adjust the specimen and observe.

4 - The standard configuration humidity test chamber has a test hole, which can easily energize the specimen.

If a special size test hole is required, STD can customize it to meet customer's testing needs.

Specifications

Model STD TH-100 STD TH-225 STD TH-500 STD TH-800 STD TH-1000 Internal Dimension (mm) 400*500*500 500*600*750 700*800*900 800*1000*1000 1000*1000*1000 Overall Dimension (mm) 900*1050*1620 1000*1140*1870 1200*1340*2020 1300*1540*2120 1500*1540*2140 Interior Volume 100L 225L 500L 800L 1000L Heat load 1000W Temperature Range A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ Temperature Fluctuation ± 0.5 ℃ Temperature Deviation ± 2.0 ℃ Humidity Range 20% ~ 98% RH Humidity Deviation ± 2.5% RH Cooling Rate 1 ℃ / min Heating Rate 3 ℃ / min Cooling system Mechanical compression refrigeration system Refrigerating unit French TECUMSEH compressor Heating Element Nichrome heater Controller Programmable color LCD touch screen controller, Ethernet connection Water supply system Automatic water supply, Water purification system Humidifier External isolation, stainless steel surface evaporation humidifier Safety Device Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection Exterior Material Steel Plate with protective coating Interior Material SUS304 stainless steel Thermal Insulation Polyurethane foam and insulation cotton Observation Window Interior lighting, double-layer thermo stability silicone rubber sealing Standard Configuration 1 Cable hole with plug; 2 shelves
