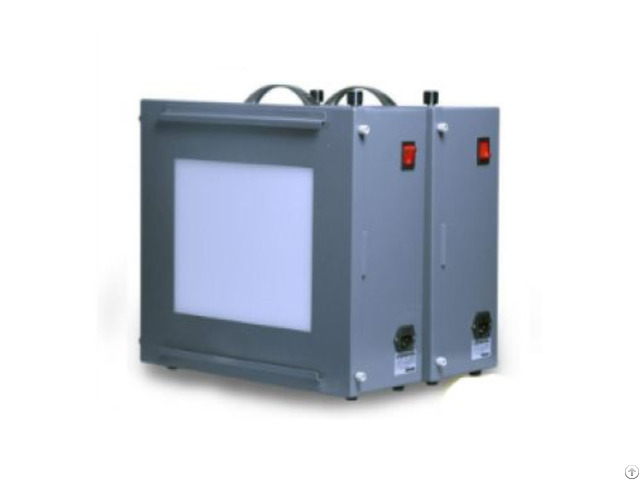

Image Test Standard Transmission Light Box Meter - China

Standard

CIE 15: 2004: Adheres to colorimetry standards for spectral measurement.

ISO 3664: 2009: Compliant with viewing conditions for graphic arts and photography.

IEC 62471: Meets photobiological safety requirements for LED lighting.

Product Advantages

1 - Professional-Grade Illumination 95% Uniformity: Ensures consistent testing across 250mm × 190mm work area.

CRI >95: True-color rendering for critical lens MTF (Modulation Transfer Function) analysis.

2 - Precision Dimming Control 0–30.000 Lux Range: Dual-stage rotary knobs for coarse (1.000 Lux steps) and fine (100 Lux) adjustments.

Duv ±0.002: Ultra-stable color deviation control for chromaticity testing.

3 - Energy-Efficient Design 60.000-Hour LED Lifespan: 80% less energy vs.

traditional fluorescent lamps.

Mercury-Free: RoHS-compliant construction for eco-friendly studios.

4 - Portable Performance 7.5kg Compact Build: Integrated handle for field use in quality control labs.

100–240V Universal Power: Ready for global deployment in 50/60Hz environments.

5 - Industrial Durability Anodized Aluminum Housing: Resists scratches and chemical spills.

-20°C to 60°C Operating Range: Stable performance in extreme conditions.

Product Features

LED System: DC-Driven Chips: Eliminates flicker up to 30.000 Lux.

6.500K ±100K Output: Matches D65 daylight standard.

Optical Design: Diffusion Panel: Hollow-glass bead technology reduces hotspots by >90%.

Test Chart Slot: 360mm × 285mm compartment for ISO 12233/SFRplus charts.

Control Interface: Detented Dimming Knobs: Tactile feedback for repeatable settings.

Digital Display: Real-time Lux/CRI/color temp readout.

Safety Systems: Overcurrent protection (2A fuse).

Residual current device (RCD) for operator safety.

Ergonomics: Adjustable Stand Mount: 1/4”-20 thread for tripod compatibility.

Vented Chassis: Prevents heat buildup during continuous operation.

Technical Parameters

Specification Details

Illuminated Area 250mm × 190mm (9.8” × 7.5”)

Color Temperature 6.500K ±100K (Duv ±0.002)

CRI (Ra) >95

Dimming Range 0–30.000 Lux (adjustable)

Power Supply 100–240V/50–60Hz (auto-switching)

Max.

Power Consumption 50W

Dimensions (W×D×H) 370mm × 325mm × 165mm

Weight 7.5 kg (net)

Operating Conditions 0–45°C, <85% RH (non-condensing)
