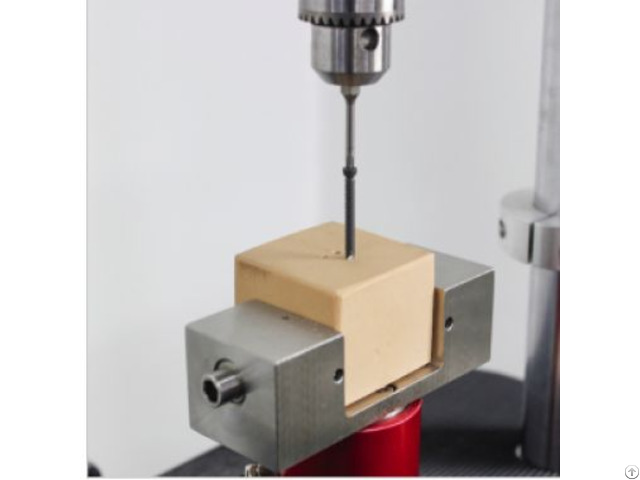

Metal Bone Screws Torque Chamber - China

Standard

YY/T 1506 - ASTM F543: The standard specifies the torque required to measure the torque required to screw a metallic bone grafting screw into and out of a standardized material in order to confirm the consistency of the product under test.

A constant force of 11.17N was maintained at a rate of 3r/min, with 4 turns screwed in and then 4 turns screwed out.

Kyle Measurement & Control M-100T is lightweight, easy to operate and precise in control, suitable for bone nail testing.

We provide you with professional test fixtures to meet the standard requirements, as well as accurate and effective test program (SOP), and optional data post-processing software to reduce the difficulty of data processing to help analyze the mechanical properties of metal bone screws.

Main technical parameters:

1 - Unit: N-m 2 - Resolution: 0.001N.

m 3 - Torque range: 0-10N.

m 4 - Torque sensor accuracy level: less than 0.5%F.S. 5 - Speed accuracy: ±0.01mm/min 6 - Axial force sensor: 2000N (taking into account the axial pull-out force test) 7 - Pressure sensor accuracy level: less than 0.5%F.S. 8 - Pressure sensor resolution: 0.001N 9 - Linear displacement sensor: range above 50m.

10 - Displacement sensor accuracy level: less than 0.5%F.S. 11 - Displacement sensor resolution: 0.01mm 12 - Torsion angle sensor: 999999 ° 13 - Torsion angle accuracy: ±0.2°.

14 - Torsion speed: 1r/min ~ 30r/min within any choice 15 - Effective stroke: 500±10mm (can be increased according to demand) 16 - Torque resolution 1/±1000000F.

S 17 - Relative error of torque display value ≤±0.2%.

18 - Torsion angle resolution 0.001°.

19 - Relative error of torsional angular velocity within ±0.5% of set value 20 - Coaxiality of the two collets ≤ ￠0.2mm 21 machine power ≈ 0.4kW 22 - Power supply voltage ～220V±10% 50Hz (must be reliably grounded)
