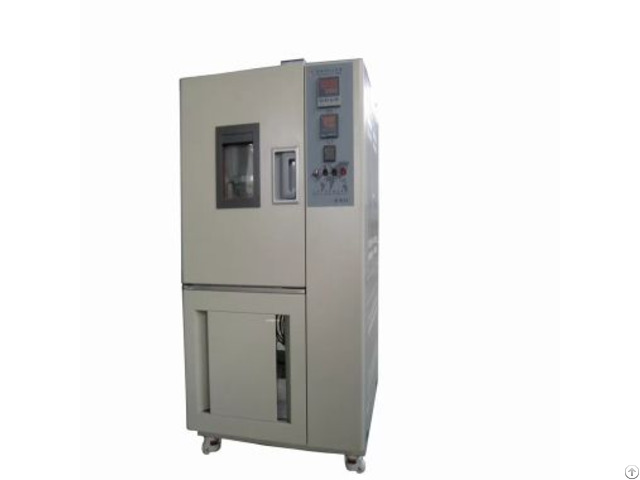

Programmable Ozone Test Device - China

Ozone aging test chamber is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products Put the sample in certain density ozone environment, after having certain discoloration or the scheduled time and compare with the standard card.

Applications of Ozone Test Chamber

• Accelerated Aging Studies • Product Quality Control • Research & Development • Quality Assurance Standards

OZ air series "ozone test chambers" are manufactured with flexibility for testing with following standards • ASTM D 518 IS-3400 (Part-20) • ASTM D 1149 ISO 1431-1 : 1989 • ASTM D 1171 • ASTM D 3395 • ASTM D 4575 • BIS, ISO, DIN, MIL Stainless chamber walls are sealed with high-grade fiber gasket to assure leak proof operation Ozone concentration 0～1000pphm Test chamber temperature RT～+70℃ surface temperature fluctuations degrees + /-0.5 ℃ Load 10 kg Technical parameters

Model Ozone Test Chamber Manufacturer

Ozone concentration 0~1000pphm adjustable

Relative humidity 60%RH above

Temperature RT+10~+70℃

Ozone produced mode Ozone generator or UV absorption method

Inside air velocity over 2 feet/sec

Degree of ozone concentration fluctuation 10%

Inside size 500×500×600mm

Air flow A.

0-6 cfm;B.

10-20 cfh

Weight 250kg

Power AC220V, 15A

Accessories tensile fixture 6 groups

Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.

Applicable industries

It is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.
