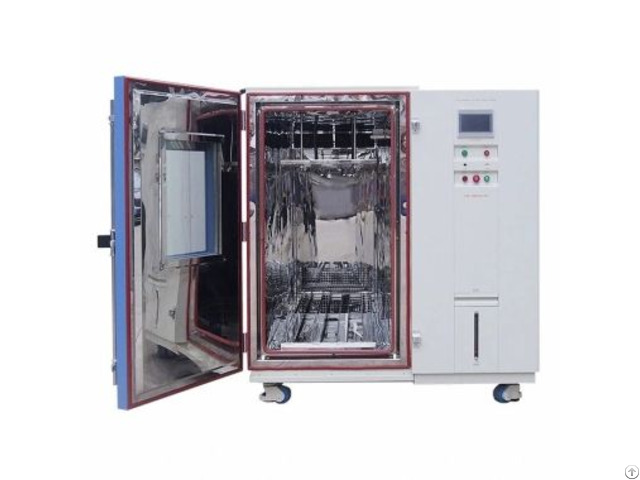

Pv Environmental Test Chamber - China

Features and Benefits

1 - PV environmental test chamber can accurately simulate various temperature and humidity conditions, and the temperature deviation can be controlled at ±0.5℃.

Humidity deviation is also controlled within a small range ( ±2.5%RH).

2 - PV environmental test chamber has good sealing performance to ensure the stability of environmental conditions during the test.

The high quality rubber sealing ring can effectively prevent the outside air and water from entering the inside of the test chamber, affecting the test results.

3 - Test Spaces of different sizes and shapes can be customized to meet the needs of photovoltaic module testing of various specifications.

Whether it is a small photovoltaic cell sheet or a large photovoltaic module array.

4 - The photovoltaic modules are tested in batches to screen out products with stable performance and reliable quality, reduce the defective rate, and improve production efficiency and economic benefits.

Specifications

Model

STD PV-04 Internal Dimension (mm)

1300*700*1350 Overall Dimension (mm)

1900*1100*1750 Interior Volume

1220L Parameter

Temperature Range -60℃ ～ +100 ℃ Temperature Fluctuation

± 0.5 ℃ Temperature Deviation

± 2.0 ℃ Humidity Range

20% ~ 98% RH Humidity Deviation

± 2.5% RH Temperature Change Rate

1 ~ 3.4℃ / Min Panel Size

1M*2M Panel Capacity

4 / 6 / 8 / 10 / 12 Pieces Controller

Programmable color LCD touch screen controller Ethernet connection, PC Link, USB Humidity

Water supply system Automatic water supply Water supply system Water purification system Humidifier External isolation, stainless steel surface evaporation humidifier Dehumidification Evaporator Sensor

Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ Humidity Sensor Dry and wet bulb sensor Build-in Water Tank(mm)

270*300*450 View Window Size(mm)

330*370 Air Circulation

Centrifugal wind fan Safety Device

Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection
