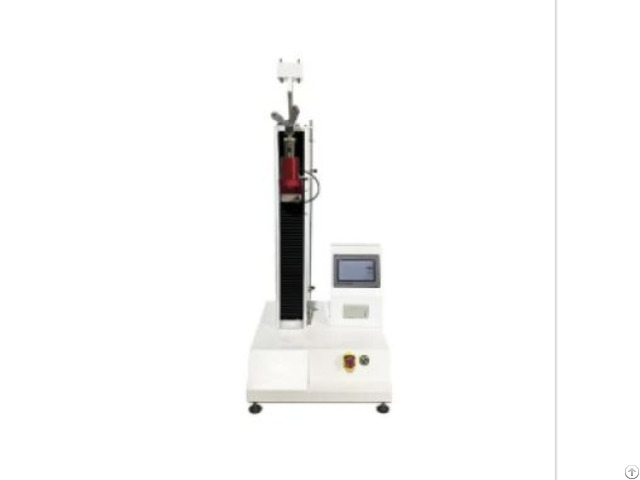

Safety Helmet Chin Strap Strength Test Device - China

Standard

GB/T 2812-2006: Safety Helmets GB/T 2811-2019: Head Protection – Vocabulary and Test Methods Equivalent Compliance: ISO/EN 397 (Industrial Safety Helmets) CE Certification (Conformité Européenne)

Accessories Included

Testing Kit: 2x Adult-Size Head Forms (56cm/58cm circumference).

5x Calibration Grade Load Cells (10N–2.000N).

Software Suite: License key for ChinStrapTest Pro (Windows/macOS).

1-year free access to cloud-based tensile analysis tools.

Calibration & Safety: NIST-traceable force gauge.

2x Safety Glasses (EN 166 rated).

Maintenance Kit: Spare drive belts and bearings.

Machine cleaning solution (non-corrosive).

Documentation: Multilingual quick-start guide (printed + digital).

Compliance certificates for GB/T/ISO standards.

Technical Parameters

Parameter Specification

Force Range 0–2.000N (200 kgf capacity)

Load Rate 20N/min ±2N/min (adjustable)

Max Load Time 150N achieved within 60s

Force Resolution 0.1N (10 gf)

Head Model Quick-swap anthropomorphic mandible

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 600mm (W) × 450mm (D) × 1.200mm (H)

Weight 80 kg (net)
