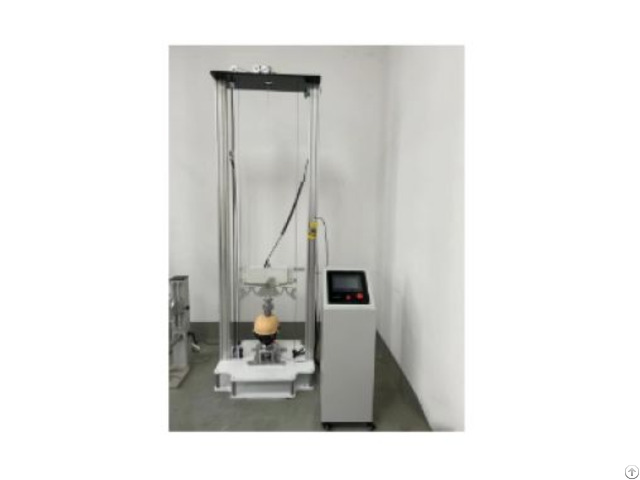

Safety Helmets Impact And Penetration Resistance Test Device - China

Standard

GB/T 2811-2019 (China’s national standard for helmet safety and impact resistance) GB/T 2812-2006/XXXX (Testing methods for impact absorption and penetration resistance of helmets) ISO 6220-2 (Road vehicles – Restraint systems for occupants – Test methods for energy absorption) EN 960 (Headforms for protective helmet testing)

Accessories Included

Headform Kit – EN 960 S/M/L sizes with polyurethane skin coating.

Hammer Set – Impact (5.0kg) and penetration (3.0kg) hammers with storage case.

Calibration Tools – NIST-traceable force gauge and Rockwell hardness tester.

Safety Kit – Light curtain, energy-absorbing base mat, and emergency stop button.

Software License – Lifetime access to HelmetImpact Pro (cloud-connected with API for integration with QMS systems).

Installation & Training – On-site setup by certified engineers + 16hrs virtual training for operators.

Technical Parameters

Specification Impact Test Penetration Test

Drop Height 1.000±5mm 1.000±5mm

Hammer Weight 5.0±0.1kg 3.0±0.05kg

Tip Geometry Hemisphere (R50±1mm) Cone (60°±0.5°, 40mm min.

)

Force Sensor 20.000N, 5kHz sampling N/A (mechanical stop)

Data Resolution 0.1N 0.1mm displacement

Frame Height 4.000mm 4.000mm

Power Requirements 220V/110V AC, 50/60Hz, 800W
