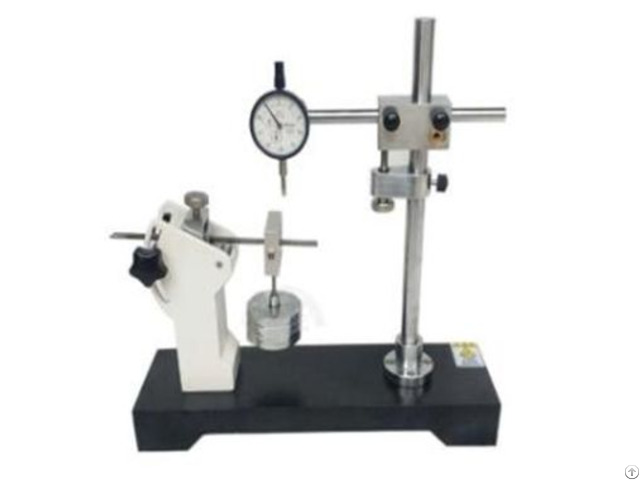

Shank Flexural Strength Tester - China

product introduction:

the electric hook core anti-bending performance tester is used to test the anti-bending performance of the steel hook core.

insert the hook core into the fixture and rotate it 180° around the center column with a diameter of ∮10mm.

visually detect the small crack on the surface and whether it is broken to determine its quality.

according to the criteria:

gb/t28011-2021 footwear steel core, qb/t 1917-2000 "leather shoes steel core" product advantages:

measures key structural integrity: evaluates the bending resistance and structural soundness of steel shanks, a vital component in footwear durability.

standard compliant: designed to meet relevant national standards (gb/t 28011 - qb/t 1917) for testing steel shanks.

quantitative assessment: allows for objective determination of quality based on visual inspection for cracks or breakage after a defined bending test.

electric automatic bending: ensures consistent and repeatable test results through automated operation.

easy to use: features like an adjustable fixture and one-button operation simplify the testing process.

includes safety features: equipped with a protective cover for operator safety.

product features:

fixture to securely hold the steel shank test specimen, with adjustability for different shank sizes/shapes.

mechanism to perform a controlled bending of the steel shank through 180°.

a cylindrical center column (mandrel) with a diameter of $\phi$10mm around which the shank is bent.

electric motor for automatic bending operation according to new standards.

controlled test speed of 60 ± 10 seconds per revolution (for the 180° bend and return).

transparent protective cover (6mm thick) for safety during the test.

one-button reset function.

automatic return to the zero or starting position.

technical parameters:

1 - bending angle: 0-180° 2 - center column: ∮10mm 3 - test speed: 60±10s/r 4 - protective cover: 6mm thick transparent protective cover 5 - overall size: 580×390×140mm(w×d×h) 6 - weight: 20kg 7 - power supply: ac220v 50hz
