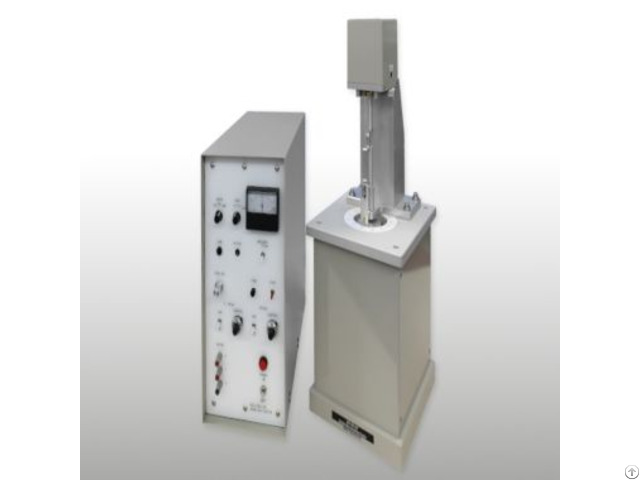

Single Strand Bending Tester Std Fb2 Sh - China

Standards

ASTM A370 - ASTM A416 - ISO6934.4 The Single Fiber Bending Tester makes it possible to easily measure and quantify softness, elasticity, and diffusion differences in a single strand of yarn or hair.

Elasticity and diffusion differences can be quantified by measuring the hardness and recoverability when bending the target.

With the STD-FB2-SH, measurements can be performed easily for a single strand, eliminating effort spent creating multiple samples.

Features

Capture minute area moments as felt by a fingertip thanks to the device' s wire torsion torque detection method.

Quantify data correlating to sensory evaluations with high reproducibility.

Successfully eliminate user-caused measurement errors thanks to a simple measurement operation.

Specification

Product Name Single Fiber Bending Tester

Dimensions (W × D × H) approx.

Measuring unit: 210 × 240 × 580 mm

Amplifier: 180 × 400 × 400 mm

Weight approx.

Measuring unit: 30 kg

Amplifier: 10 kg

Power supply, Frequency 100VAC, 50/60Hz

Interface STD-USB (optional)

PC (optional) *1

Data logger output terminal

OS Windows 7/8/8.1/10

Sample size Diameter: ⌀0.07 mm/⌀0.1 mm/⌀0.12 mm (max.

)

Three types of chucks are available as the standard accessories.

Length: 20 mm (min.

)
