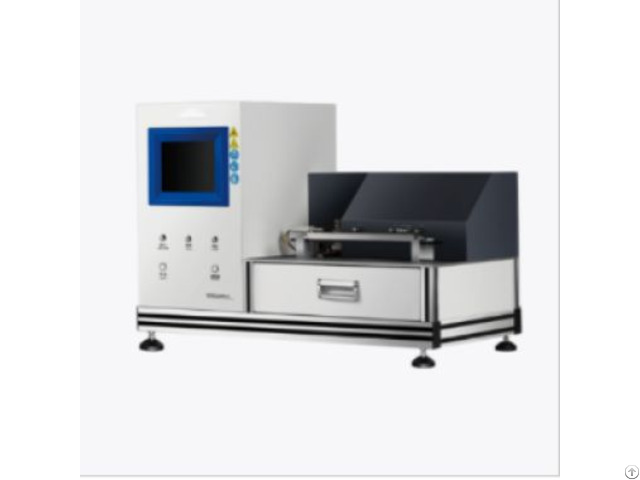

Solid Combustion Rate Chamber - China

Product Features

1 - It adopts an embedded processor and Windows CE operating system.

2 - With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3 - It integrates two functions, "sieving experiment" and "combustion rate experiment", into one.

4 - It is applicable to the detection of two types of sample materials: non - metallic powder and metallic powder.

5 - It is equipped with a standard stacking mold and features a user - friendly shaking handle design.

6 - Strictly in accordance with standard requirements, an ignition torch is used for the sieving experiment, eliminating the need for a gas cylinder and ensuring safety.

7 - A nitrogen rod is used as the ignition source for the combustion rate experiment.

The material has high stability, and the ignition source temperature detection device ensures that the ignition temperature reaches above 1000°C.

8 - It uses full - automatic infrared flame detection technology, which can reliably detect open flames and smoldering phenomena, ensuring detection accuracy.

9 - It has a fault - detection function and audible and visual alarm functions to ensure the safety of the experiment.

10 - The experimental process is fully automated, requiring no manual intervention.

It supports functions such as parameter setting, data storage, and report viewing.

Technical parameters

Operating environment (5~40)°C, <85%RH Ignition source temperature ≥1000°C Ignition method Gas igniter with nitrogen-silicon rod Combustion detection stroke (0~250)mm Combustion distance measurement accuracy ±0.5mm Timing range 5min (non-metallic); 20min (metallic) Timing display resolution 0.1s Pile stack mold Triangular-shaped molds 260mm long, 20mm wide, profiled to an inner height of 10mm Burner plate Flat plate made of corundum mullite, impervious to penetration, non-combustible, and with low thermal conductivity
