Spring Tensile Strength Testing Equipment - China

Product Introduction:

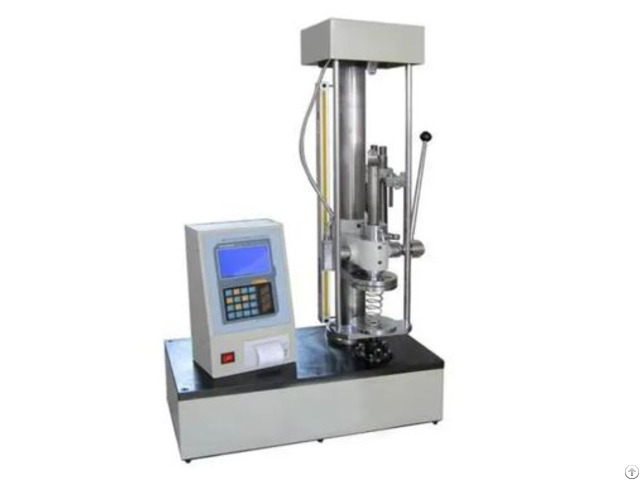

The spring tension and compression testing machine has accurate loading speed and force measurement range, and has high precision and sensitivity to the measurement and control of load, deformation and displacement.

It is mainly suitable for the tensile and compressive force load testing of spring, rubber, reed and other elastic devices under a certain working length.

Applicable standards:

ISO 10243 ; EN 13597 ; JB/T 7796-1995 - JB/T 7796-2005 "Spring tensile testing machine test method" GB/T 13634 "Calibration of Dynamometer for Testing machine calibration" JIS B7738-1993 "Spiral spring pressure and tension Testing Machine"

Main parameters:

Force measurement range: 1%——100%FS Test speed: 0.5——500mm/min Displacement stroke: 170mm Spring free length: 170mm Disc diameter: 50mm Unit: N, kgf, lbf, ozf Power supply: AC 220V±10% 50Hz Operating temperature: 20±10℃ Transport temperature: -27℃——+70℃
