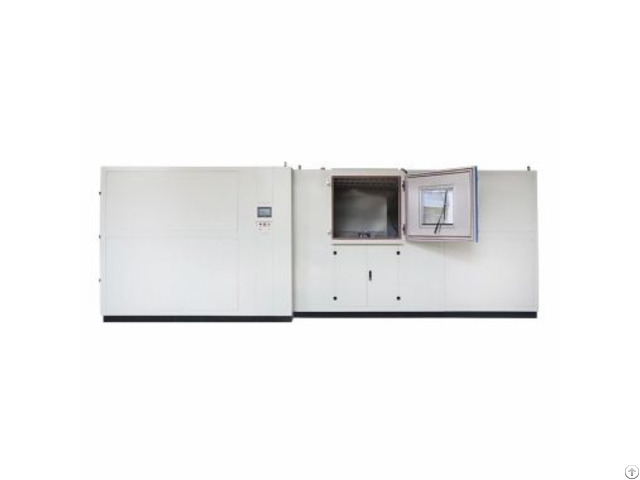

Std Blowing Sand And Dust Test Chamber - China

Features and Benefits

1 - Custom systems, the size and performance can be customized according to the customer's needs.

2 - Automatically fill sand or dust, automatically distributes sand or dust over time.

Automatic temperature & humidity control.

3 - All these parameters can be programmed using the programmable colour touch screen controller, can be connected to the computer and the laboratory operating system, so as to achieve remote control.

4 - After effectively communicating with the customer about the test requirements, the model can be accurately designed and the blowing sand test chamber can be delivered quickly.

Specifications

Model

STD DIM-1000 Internal Dimension

1000*1000*1000mm D*W*H Overall Dimension

3000*6100*2200mm D*W*H Interior Volume

1000L Blowing Dust

Air velocity

1.5 -8.9m/s Concentration of dust

10.7±7g/ m³ Dust particles

＜ 150μm Blowing sand

Air velocity

18.0 -29.0m/s Concentration of sand

0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³ Sand particles

149μm - 600μm, 600μm - 850μm Controller

Programmable color LCD touch screen controller, Ethernet connection Testing Platform Diameter

600mm Door Lock

Electromagnetic lock Testing Platform Speed

1-7 r.p.m Dust Detector

Integrated dust detector Exterior Material

A3 Steel Plate with protective coating Interior Material

SUS304 stainless steel Standard

MIL-STD- 810
