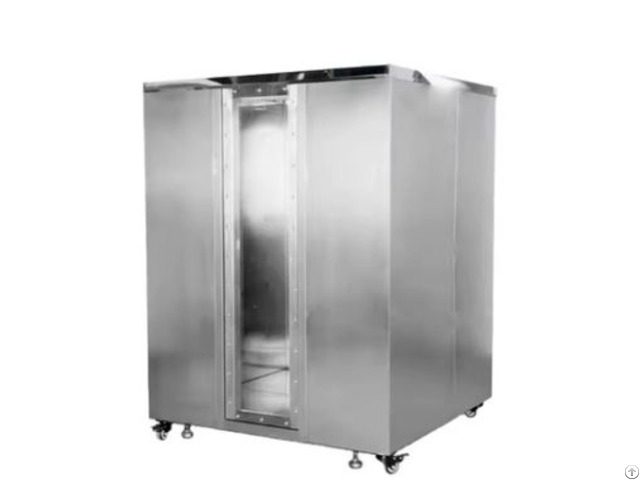

Std Ipx7 Machine Waterproof Test Chamber - China

Detailed Product Description

Machine Size: L960*D900*H1360mm(With Castors) Inner Size: L800*W800*H1200mm

Water Max.

Depth: 1.2m Tept.

Control: 40-90℃(Optional Function)

Perspective Window: Stalinite(Thickness：12m m) Perspective Window Width: 200mm

Water Level Control Mode: Water/drain Valve By Manual Adjustment Machine Material: Stainless Steel 304#

Highlight: STD IPX7 Waterproof Test Chamber Continuous Water Agitation IPX7 Machine Water Immersion Test IPX7 Machine Product Introduction

Test the product waterproof performance in the soaking environment (water depth 1 meters).

Through the test, check whether the product waterproof level meet the requipments, so that the product design, R & D and factory inspection use.

Characteristics

1 - suitable for IPX7 waterproof grade test of the product.

2 - this box allows the maximum water depth of 1.2 meters, the bottom area: 800*800mm.

(Customizable) 3 - double-layer structure: the inner layer of SUS304# stainless steel plate high-precision integral sub-arc welding forming, to ensure long-term use of no rust, no water; the middle of the two layers with 40 square steel reinforcement to keep the inner box will not be deformed; C, the outer layer is welded with hairline stainless steel plate, the stainless steel plate is wrapped, the appearance has no solder joints, and the overall appearance is beautiful.

4 - Install the water inlet and outlet pipes below the water tank.

5 - the observation window is made of 12mm tempered glass bonding, can clearly observe the test situation of the sample.

6 - stainless steel frame with load casters and foot cups, easy to move and fix.

7 - stainless steel ruler accurately display water level.

A stainless steel hook is welded to the top of the inner box to facilitate users to take and place test samples.

8 - The bath have continuous water agitation facility Main Technical Parmeters

Machine Size L960*D900*H1360mm(With Castors)

Inner Size L800*W800*H1200mm

Water Max.

Depth 1.2m

Inner Thickness 1.5mm

Perspective Window Stalinite(Thickness: 12mm)

Perspective Window Width 200mm

Water level control Mode Water/drain valve by manual adjustment

Water Level Display Stainless steel ruler(Accuracy 1mm), Horizontal visual

Machine Material Stainless steel 304#
