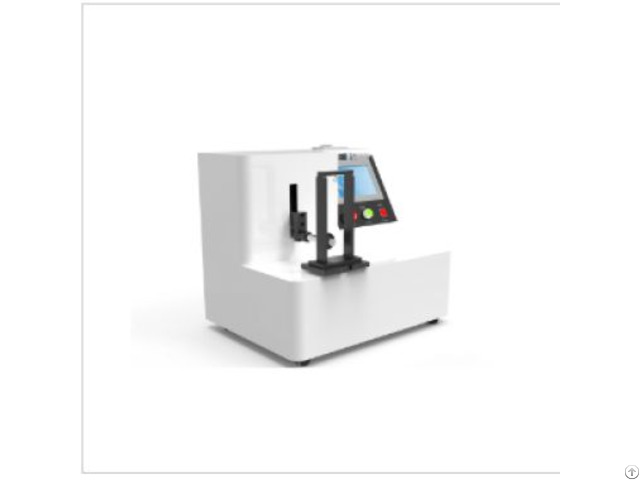

Suture Needle Cutting Force Tester - China

The Cutting Force Tester for Suture Needles is a precision instrument specifically used to detect the force required by medical suture needles during the cutting process.

The following is a detailed introduction to its main uses, compliance standards, and technical parameters: Compliance Standards

YY/T 0043 Medical Suture Needles and YY 0166 Suture Needles with Thread, etc.

Main Uses

Evaluating Cutting Performance: By measuring the cutting force required for suture needles to penetrate simulated tissues, the cutting performance and stability of suture needles are evaluated.

This is crucial for ensuring the effectiveness and safety of suture needles in actual surgeries.

Quality Control: In the production process of medical devices, as a key tool for quality control, it is used to detect whether the cutting force of suture needles meets relevant standards and regulations.

R & D Support: During the R & D process of medical suture needles, the tester can provide key data support, helping researchers understand the impact of different materials, designs, and processes on the cutting force of suture needles, thus optimizing product performance.

Product Certification: It provides the data support needed for product certification for manufacturers of medical suture needles, ensuring that products comply with relevant international or domestic standards and regulations.

Technical Parameters

Operation Interface: It offers a simplified Chinese/English selection.

The interface is user - friendly and easy to operate.

Measurement Range: 0 - 80N, with an error not exceeding ±0.1N, ensuring the accuracy of measurement results.

Testing Speed: Less than or equal to 10mm/s (the testing speed can be freely set) to simulate the cutting speed in actual surgeries.

Resolution: 0.01N, for high - precision measurement, meeting the demand for fine evaluation of the cutting force of suture needles.

Sensor: A high - precision force value sensor is adopted to ensure the stability and reliability of measurement results.

Display Screen: A 7 - inch high - resolution touch screen, which directly displays test data and curves.

Programmable Controller: PLC/ARM, supporting multiple testing modes and data processing functions.

External Dimensions: 430x290x250mm (the specific dimensions may vary depending on the model).

Power Supply: AC90V - 240V/50Hz (adaptive wide voltage), convenient for use in different countries and regions.
