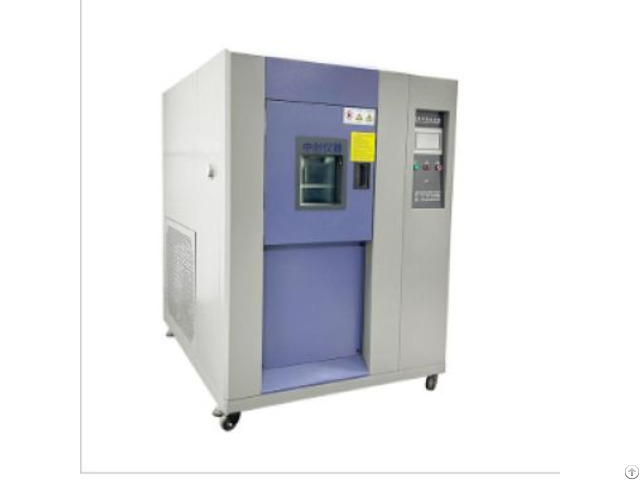

Temperature Cycling Test Chamber - China

Standard BS 7291: Compliant for thermal cycling tests on thermoplastic pipe systems (1769 Series with pressure chamber).

Adaptive Certification: Configurable to meet ISO, ASTM, and EN standards upon request.

Product Advantages

1 - Forward-Thinking Technology

SmartCool™ System: Advanced thermal cycling algorithms anticipate evolving industry needs, ensuring long-term relevance.

Enhanced Water Flow: Optimized hydraulic design supports high-volume testing for pipes up to Ø160mm—critical for modern infrastructure projects.

2 - Unmatched Reliability

30+ Years of Expertise: Proven structural integrity with corrosion-resistant stainless steel chambers and industrial-grade components.

Consistent Repeatability: ±0.5°C temperature control and <1% flow variation guarantee ISO 17025-level precision.

3 - Modular Adaptability

Custom Configurations: Tailor the chamber to your workflow with interchangeable accessories and dual-model options (pressurized/non-pressuri zed).

4 - High-Throughput Performance

16 Bar Pressure Rating: Simulate extreme hydraulic conditions with industry-leading 25m³/h flow capacity.

Rapid Thermal Shock: Achieve -20°C to 114°C transitions in <30 minutes (1769 Series).

Product Features

Dual Models for Diverse Needs:

1769 Series (Pressurized): Operates up to 114°C with integrated pressure chamber for BS 7291 compliance.

1770 Series (Non-Pressurized): Cost-efficient solution for tests up to 95°C.

Smart Sample Management:

Adjustable tension rig with load cell (0–500N) for real-time strain monitoring.

Perforated wall panels and custom fixtures for irregularly shaped specimens.

Technical Parameters

Specification 1769 Series (Pressurized) 1770 Series (Non-Pressurized)

Temperature Range -20°C to 114°C -20°C to 95°C

Max.

Test Pressure 16 bar (232 psi) N/A

Flow Rate 25 m³/h (108 GPM) 25 m³/h (108 GPM)

Max.

Sample Ø 160 mm 160 mm

Power Supply 380V/50Hz 3-phase (CE certified) 220V/60Hz single-phase (UL listed)

Chamber Volume 850L (expandable to 1, 200L) 600L

Dimensions (W×D×H) 1, 200mm × 800mm × 1, 900mm 900mm × 700mm × 1, 700mm

Weight 680 kg (net) 520 kg (net)

Accessories & Options

Chamber Access:

Single-hinged door (standard) or dual-swing doors for walk-in loading.

Sample Fixation:

Adjustable racks for pipes/fittings (Ø16mm–Ø160mm).

Custom perforated walls for bundled specimens.

Tension Control:

Motorized tension rig with 0.1N resolution load cell.
