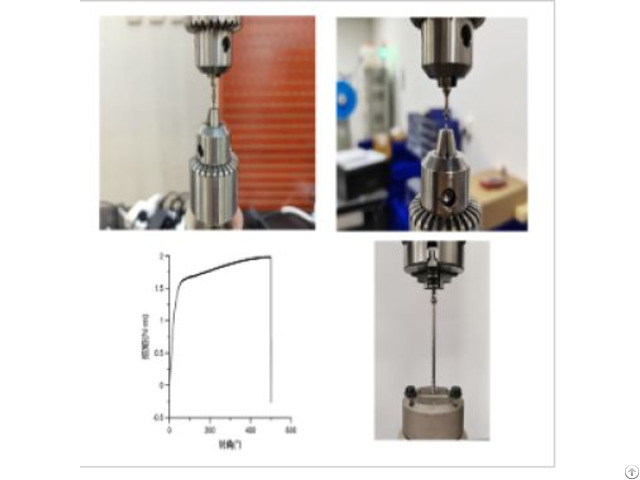

Torque To Failure Tester For Metal Bone Connecting Screws - China

Standard

YY/T 0662-2008 (Chinese standard for orthopedic implant testing) ISO 5832-1 (Metallic materials for surgical implants – Wrought stainless steel) ASTM F543 (Standard specification for metallic medical bone screws) ISO 6475 (Breaking torque and angle of rotation at failure for metal bone screws) EN ISO 14708-1 (Active implantable medical devices – General safety requirements) Product Advantages

Multi-Standard Compliance: Seamlessly aligns with ASTM, ISO, and EN standards, enabling global market access.

High-Precision Torsional Testing: Capable of measuring breaking torque and rotational angles with ±0.1% accuracy, critical for evaluating screw uniformity.

Versatile Testing Modes: Supports torsional-only and axial-torsional combined loading (up to 17.750 in-lb torque capacity) for comprehensive material characterization.

User-Friendly Interface: Intuitive software with real-time data logging, test customization, and automated report generation (PDF/Excel formats).

Durability: Robust construction with corrosion-resistant components, ideal for repetitive high-load testing in medical device labs.

Product Features

Torque Capacity: 62–17.750 in-lb (0.7–2000 Nm), covering small-diameter screws to heavy-duty implants.

Rotational Speed: 0.001°–360°/min, adjustable for static or dynamic failure analysis.

Axial-Torsional Synchronization: Optional biaxial loading for simulating complex surgical insertion forces (per ASTM F543’s full test suite).

Collet-Style Grips: Non-slip, specimen-friendly clamping to prevent premature failure or specimen damage.

Biomechanical Simulation: Compatible with rigid polyurethane foam (ASTM F1839) and natural bone substitutes for self-tapping/driving tests.

Safety Systems: Emergency stop, overload protection, and automatic specimen ejection.

Accessories (Included/Optional)

Standard Kit: Collet grips (4 mm–8 mm diameter range) Rigid polyurethane foam blocks (ASTM F1839-compliant) Calibration certificate (ISO 17025 accredited) Test control software (multi-language support) Optional Upgrades: Axial-torsional load frame (for combined loading tests) High-temperature chamber (for thermal stability testing) Automated specimen feeder (high-throughput labs) Custom collet sets (for miniature or oversized screws) Technical Parameters

Parameter Specification

Torque Range 62–17.750 in-lb (0.7–2000 Nm)

Angular Resolution 0.001°

Axial Load Capacity Up to 50 kN (optional)

Speed Control 0.001°–360°/min (torsional)

Data Sampling Rate 5000 Hz

Power Supply 110V/220V, 50/60Hz

Dimensions (W×D×H) 24"×36"×72" (610×914×1829 mm)

Weight 450 kg
