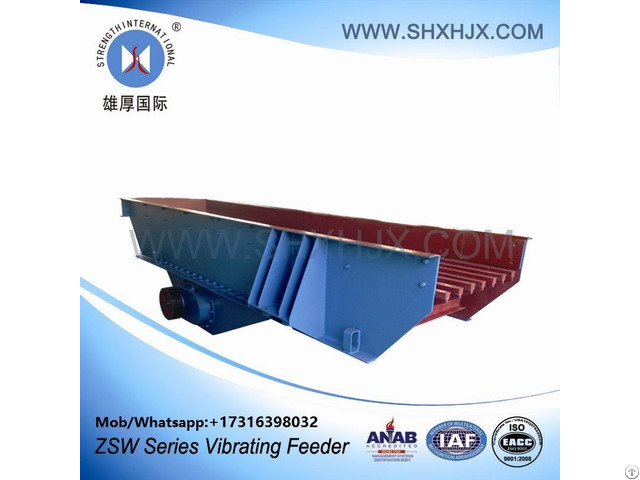

Mining Machinery Primary Vibrating Feeder - China

Vibrating feeder is applied to feed jaw crusher and generally installed in front of the primary crusher, conveys big blocks continuously and evenly while removing the dirt and impurities by screen bars.

As a necessary equipment, it can effectively control the feeding capacity to match with the capacity of the whole crushing plant.

It features strong construction, anti-strike and wearable.

Model: GZD300×90 Max.

Feed Size (mm): 425

Producing Capacity(t/h): 40-100 Motor Power(kw): 2×2.2 Number of Motor: 2

Overall Diameters (mm): 3307×1430×1450 Weight(t): 2.55 Chute Size(mm): 900×3000 Model: GZD380×96 Max.

Feed Size (mm): 550

Producing Capacity(t/h): 80-150 Motor Power(kw): 2×(3-3.7) Overall Diameters (mm): 3870×1860×1190 Weight(t): 3.24 Chute Size(mm): 960×3800 Model: 2GZD380×96 Max.

Feed Size (mm): 550

Producing Capacity(t/h): 80-160 Motor Power(kw): 2×5.5

Overall Diameters (mm): 3870×1860×1420 Weight(t): 3.8 Chute Size(mm): 960×3800 Model: GZZ490×110 Max.

Feed Size (mm): 630

Producing Capacity(t/h): 150-250 Eccentric Shaft Rotation Speed (rpm): 500-800

Motor Power(kw): 18.5

Number of Motor: 1

Overall Diameters (mm): 4900×1660×1420 Weight(t): 5 Chute Size(mm): 1100×4800 Model: GZZ600×120 Max.

Feed Size (mm): 750

Producing Capacity(t/h): 190-280 Eccentric Shaft Rotation Speed (rpm): 500-990

Motor Power(kw): 22

Overall Diameters (mm): 5950×1760×1420 Weight(t): 6.6 Chute Size(mm): 1200×5800 Model: ZSW380×96 Max.

Feed Size (mm): 550

Producing Capacity(t/h): 80-150 Eccentric Shaft Rotation Speed (rpm): 500-720

Motor Power(kw): 11

Overall Diameters (mm): 3882×1700×1350

Weight(t): 4.36 Chute Size(mm): 960×3800 Model: ZSW490×110 Max.

Feed Size (mm): 630

Producing Capacity(t/h): 120-280 Eccentric Shaft Rotation Speed (rpm): 500-800

Motor Power(kw): 15

Overall Diameters (mm): 4957×1850×1350

Weight(t): 5.5 Chute Size(mm): 1100×4900 Model: ZSW590×110 Max.

Feed Size (mm): 700

Producing Capacity(t/h): 200-350 Eccentric Shaft Rotation Speed (rpm): 500-800

Overall Diameters (mm): 6000×1840×1400

Weight(t): 6.3

Chute Size(mm): 1100×5900 Model: ZSW600×130 Max.

Feed Size (mm): 500

Producing Capacity(t/h): 400-560 Eccentric Shaft Rotation Speed (rpm): 500-800

Overall Diameters (mm): 6082×2000×1450

Weight(t): 7.8

Chute Size(mm): 1300×6000 Pre-sales Service

* Offer professional suggestions for equipment selection.

* The equipment can be modified the design according to

customers requirements besides standard model.

* Planning site and offer the suitable flow schemes.

In-sales Service

* Follow up on the progress of the production and quality of

the equipment.

* Ensure the delivery, offer relative drawings, and record the

trial run.

* To assistant customer checking and acceptance the

equipment.

After-sales

* Send professional technicians to assist in installation, commissioning and operation in production site.

* Training the operator and maintainer to ensure the normal operation of the equipment.

* For any troubles aroused under warranty, we will offer solutions within 48 hours and send technician to reach the site ASAP if needed.

About Xionghou

Shanghai Xionghou Machinery Manufacturing Co., Ltd. provides you an overall solution for your mine project with a production capacity ranging from 40t/h to 600t/h complete crushing and screening plants which including vibrating feeders, primary and secondary crushers, screens, sand makers, sand washers, grinding mills, conveyors, dust collectors, centralized electronic control and associated equipment.

Xionghou’s professional technology and after-sales service team provide customer the whole mining operation, including geological survey, production line design, equipment assembly, commissioning, debugging, training, safety production management, and relative services.

For equipment problems, we would serving the customers with timely solutions to resume production and do an analysis after that.
