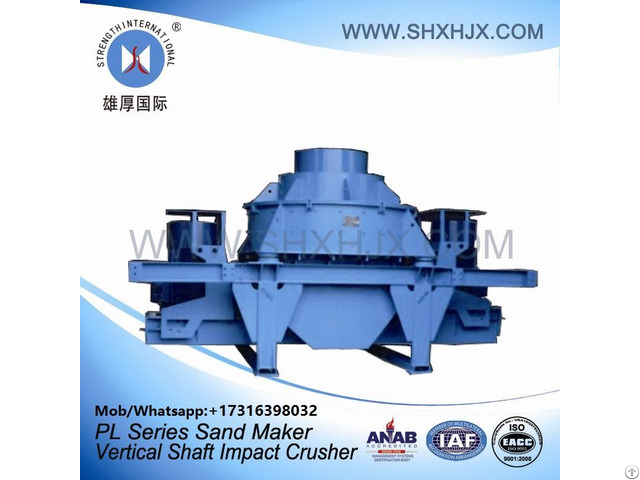

Sand Making Machine Mining Ore Vertical Shaft Impact Crusher - China

PL series vertical shaft impact crusher is newly developed sand making and shaping machine, based on experienced design, manufacturing and service.

Due to its high sand making efficiency, low use costs, etc., the vertical shaft impact crusher has become the preferred equipment in domestic and overseas mechanism sand industries.

It is widely used for fine crushing and sand making operations of rocks, cobble stones and other ores.

Features

1 - High crushing performance, multiple functions: fine crushing, sand making and shaping, 2 - Simple structure, high work reliability, low operation costs, convenient installation and maintenance

3 - High performance in going through uncrushable materials, small influence by moisture, moisture content less than 8%

4 - The end products with cubic shape, low flakiness rate.

It is suitable for artificial sand making, aggregate shaping and quality highway stones.

5 - Low noise (less than 80 db) and low dust.

Model: PL700

Max.

Feed Size(mm): 25

Rotor Diameter(mm): 700

Producing Capacity(t/h): 20-60

Motor Power(kw) : 55-90

Rotor Speed(rpm): 1400-1850

Weight(t): 6.8

Overall Dimensions(L×W×H) (mm): 4170×1980×2190 Model: PL850

Max.

Feed Size(mm): 35

Rotor Diameter(mm): 850

Producing Capacity(t/h): 800-100

Motor Power(kw) : 110-132

Rotor Speed(rpm): 1200-1450

Weight(t): 14.5

Overall Dimensions(L×W×H) (mm): 5050×2250×2760 Model: PL1000

Max.

Feed Size(mm): 45

Rotor Diameter(mm): 1000

Producing Capacity(t/h): 120-150

Motor Power(kw) : 132-160

Rotor Speed(rpm): 1100-1200

Weight(t): 15.5

Overall Dimensions(L×W×H) (mm): 5350×2340×2985 Model: PL1300

Max.

Feed Size(mm): 55

Rotor Diameter(mm): 1300

Producing Capacity(t/h): 160-200

Motor Power(kw) : 160-200

Rotor Speed(rpm): 900-1000

Weight(t): 17.6

Overall Dimensions(L×W×H) (mm): 6200×2650×3250

Pre-sales Service

* Offer professional suggestions for equipment selection.

* The equipment can be modified the design according to

customers requirements besides standard model.

* Planning site and offer the suitable flow schemes.

In-sales Service

* Follow up on the progress of the production and quality of

the equipment.

* Ensure the delivery, offer relative drawings, and record the

trial run.

* To assistant customer checking and acceptance the

equipment.

After-sales

* Send professional technicians to assist in installation, commissioning and operation in production site.

* Training the operator and maintainer to ensure the normal operation of the equipment.

* For any troubles aroused under warranty, we will offer solutions within 48 hours and send technician to reach the site ASAP if needed.

About Xionghou

Shanghai Xionghou Machinery Manufacturing Co., Ltd. provides you an overall solution for your mine project with a production capacity ranging from 40t/h to 600t/h complete crushing and screening plants which including vibrating feeders, primary and secondary crushers, screens, sand makers, sand washers, grinding mills, conveyors, dust collectors, centralized electronic control and associated equipment.

Xionghou’s professional technology and after-sales service team provide customer the whole mining operation, including geological survey, production line design, equipment assembly, commissioning, debugging, training, safety production management, and relative services.

For equipment problems, we would serving the customers with timely solutions to resume production and do an analysis after that.
