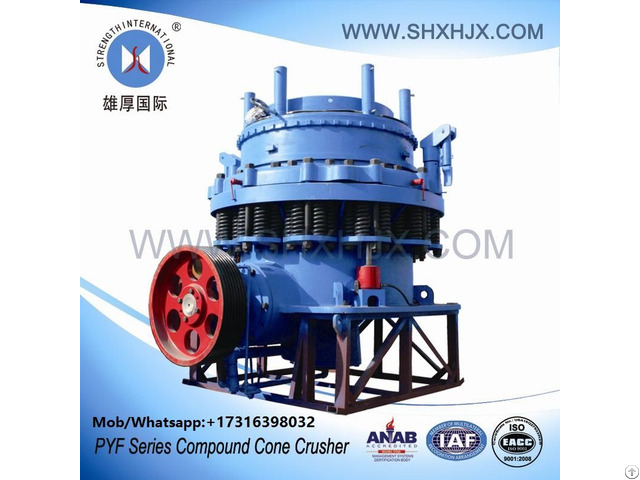

Versatility Pyf Series Compound Cone Crusher Machine - China

PYF series compound cone crusher is widely used in metallurgy, construction, road building, and chemical and silicate industrial.

It is suitable for crushing varies of ores and rocks with medium and above medium hardness.

It has the features of high crushing force, high production efficiency, large capacity, low operation cost, convenient adjustment and economical operation.

It has long life span because of reasonable material selection for spare parts and structural design.

Meanwhile, even size of production reduces cycle load.

The hydraulic chamber-cleaning system in medium and large-sized crushers reduces the downtime of the machine.

There are many chamber types for each machine, so customers have many choices to meet their demands.

This series crusher can be divided into standard type and short head type.

Generally speaking, standard type has the features of large feed size and coarse discharging size.

The short head type has steep crushing awl and its feeding material size is small, which is suitable to produce superfine crushed materials.

Therefore, the standard type is used for coarse and medium crushing and the short head type used for medium and fine crushing.

3 - The capacity is under the following condition, open crushing process, the materials with compression strength is 140Mpa-150Mpa, the moisture less than 4%, feeding evenly, the much larger or smaller size contained less than 10% and motor load is around 85%-90%.

4 - The height of machine including feeding support.

5 - The meaning of 4 figures in the model: the first 2 figures mean the 1/100 diameter for crushing cone, the last 2 figures mean 1/10 size of feed opening.

6 - Any modification to the date will not be notified otherwise.

Model: PYFB0910

Large End Diameter of Crushing Cone (mm): 900

Adjusting Range of Discharge Opening (mm): 9-22

Feed Opening Size of the Open Edge When Recommending the Min.

Discharge Opening(mm): 102

Max.

Feed Size(mm): 85

Producing Capacity (t/h): 45-91

Electric Motor Power (kw) : 75

Weight (t): 12.4

Overall Dimensions(mm): 2656×1636×2241 Model: PYFB1313

Chamber Type: STD F

Large End Diameter of Crushing Adjusting Range of Discharge Opening (mm): 13-31

Feed Opening Size of the Open Edge When Recommending the Min.

Discharge Opening(mm): 137

Max.

Feed Size(mm): 115

Producing Capacity (t/h): 109-181

Electric Motor Power (kw) : 160

Weight (t): 21.4

Overall Dimensions(mm): 2983×1866×3156 Model: PYFB1321

Chamber Type: STD M

Large End Diameter of Crushing Cone (mm): 1295

Adjusting Range of Discharge Opening (mm): 16-38

Feed Opening Size of the Open Edge When Recommending the Min.

Discharge Opening(mm): 210

Max.

Feed Size(mm): 178

Producing Capacity (t/h): 132-253

Weight (t): 21.1

Overall Dimensions(mm): 2983×1866×3156

Pre-sales Service

* Offer professional suggestions for equipment selection.

* The equipment can be modified the design according to

customers requirements besides standard model.

* Planning site and offer the suitable flow schemes.

In-sales Service

* Follow up on the progress of the production and quality of

the equipment.

* Ensure the delivery, offer relative drawings, and record the

trial run.

* To assistant customer checking and acceptance the

equipment.

After-sales

* Send professional technicians to assist in installation, commissioning and operation in production site.

* Training the operator and maintainer to ensure the normal operation of the equipment.

* For any troubles aroused under warranty, we will offer solutions within 48 hours and send technician to reach the site ASAP if needed.

About Xionghou

Shanghai Xionghou Machinery Manufacturing Co., Ltd. provides you an overall solution for your mine project with a production capacity ranging from 40t/h to 600t/h complete crushing and screening plants which including vibrating feeders, primary and secondary crushers, screens, sand makers, sand washers, grinding mills, conveyors, dust collectors, centralized electronic control and associated equipment.

Xionghou’s professional technology and after-sales service team provide customer the whole mining operation, including geological survey, production line design, equipment assembly, commissioning, debugging, training, safety production management, and relative services.

For equipment problems, we would serving the customers with timely solutions to resume production and do an analysis after that.
