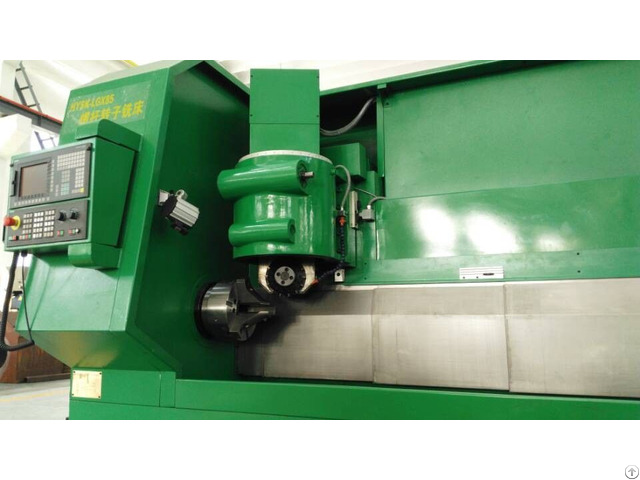

Spiral Milling Machine For Screw Pump Rotor - China

his machine can machining single-head and multihead rotors of PDM drills.

Compaired with traditional machining, this machine has the features of high working efficiency, good finish, high accuracy, good operating performance.

Items Unit HYSK-LGX85 HYSK-LGX200

Range of machining diameter mm φ28～φ84 φ85～φ200

Max.

machining length mm ≤3400 ≤6000

Work piece helical pitch 任意 任意

Work piece helix angle ±60° ±60°

X-axis travel mm 100 200

Z-axis travel mm 3500 6000

X-axis quick movement speed mm/min 0～1200 0～1200

Z-axis quick movement speed mm/min 0～2400 0～2400

X, Z feeding speed mm/min 0～1200 0～1200

Milling cutter speed r/min 50～400 30～320

Cutter facer diameter mm 200 Spindle bore diameter mm φ120 φ230

Chuck bore diameter mm φ90 φ210

Auxiliary headstock travel mm 3600 6200

Spindle speed r/min 0～20 0～15

Milling cutter motor power KW 7 15

Spindle motor power KW 5.2 7.5

X-axis motor power KW 4.3 4.3

Z-axis motor power KW 4.3 4.3

Chip conveyor motor power KW 0.2 Water pump motor power W 120 800

Liquid coolant capacity L 80 160

Machine weight ㎏ 8000 Machine dimension(L×W×H) mm 6500*2200*2000 9600*2200*2000
