Hengxiang K76 Large Encoder With Diameter 76mm Through Shaft 30mm - China

price: 70.00 Dollar US$

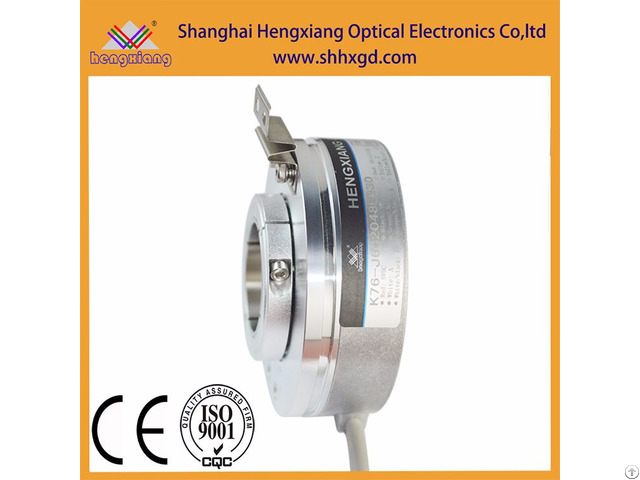

Hengxiang K76 Large Encoder With Diameter 76mm Through Shaft 30mm

Products Photos Catalog Hengxiang K76 Encoder Photos Catalog

K76-J Series Specification

Items K76 mitsubishi encoder PLC HTL replacement manufacturer

External dimensions External diameter: 76.5mm

Thickness: 28mm

Shaft diameter: 18mm, 20mm, 22mm, 25mm, 28mm, 30mm

Resolution 100;200;250;256;300;360;4 00;450;500;512;600;700;72 0;8000;

1000;1024;1200;2000;20 48;2500;3000;3600;4096;50 00;7200;8192

Output phase Phase A, B, Z or A B Z antipole

Supply voltage DC5V & DC8-30V

Outlettype Cable out from side

Output mode Collector open circuit output

Voltage output

Push-pull output

Difference output Long line drive (26LS31)

Long line drive (RT7272)

Environmental temperature Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing)

Protection grade IP50

Cable length 1M (cable length could be added appropriately by

require, but it need payment individually)

Shell Aluminium

package Carton box

Net weight About 370g (with package)

Certification CE


Company Contact:


  • Phone: 021-54613487-8019

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang , Shanghai , China

  • Email: Email


Published date: October 28, 2016

  • Business Description: Hengxiang encoder factory,

    Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.

    Revolution can up to 48000ppr.

    Max motor speed 24000rpm.
