Hengxiang S50 Solid Encoder Diameter 50mm Shaft 8mm 23040ppr Line Driver - China

price: 40.00 Dollar US$

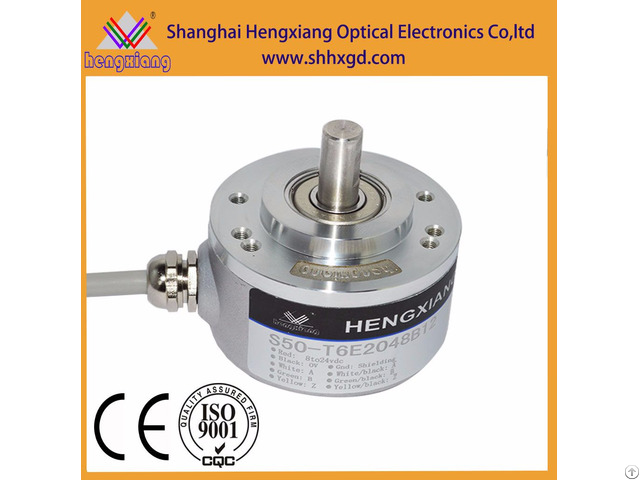

Hengxiang S50 Solid Encoder Diameter 50mm Shaft 8mm 23040ppr Line Driver

Products Photos Catalog Hengxiang S50 Solid Photos Catalog

S50- Series Specification:

Items HENGXIANG S50 nemicon replaced encoder supplier same parameters

External dimensions External diameter: 50mm

Thickness: 30mm

Shaft diameter: 8mm

Resolution 50;60;100;200;250;256;300 ;360;400;450;500;512;600;

700;720;800;900;1000;1 024;1200;2000;2048;2500;5 000

8192;10000;11520;16384;20 000;23040

Output phase Phase A, B, Z or A B Z antipole

Supply voltage DC5V & DC8-30V

Outlettype Cable out from side

Cable out from back

Socket out from back

Output mode Collector open circuit output

Voltage output

Push-pull output

Difference output Long line drive (26LS31)

compatible RS422

Long line drive (RT7272)

Environmental temperature Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing)

Protection grade IP50 & IP65

Cable length 1M (cable length could be added appropriately by

require, but it need payment individually)

Shell Aluminium

package Carton box

Net weight About 190g (with package)

Certification CE


Company Contact:


  • Phone: 021-54613487-8019

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang , Shanghai , China

  • Email: Email


Published date: October 31, 2016

  • Business Description: Hengxiang encoder factory,

    Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.

    Revolution can up to 48000ppr.

    Max motor speed 24000rpm.
