CNC Machine Tool PD-ST Medium-Speed Wire-Moving Control System

Product category: CNC machine tool control system

Product model: PD-ST medium-speed wire movement

Brand: Wenjie CNC

Manufacturer: Taizhou Wenjie CNC Equipment Co., Ltd.

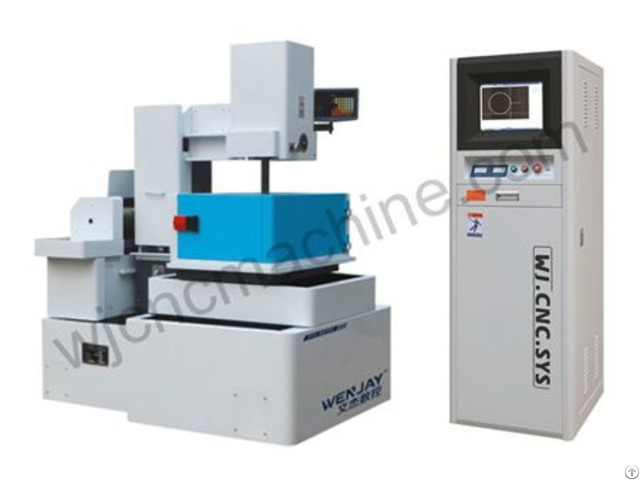

Product description: The medium-speed wire-moving control cabinet of the Company adopts the multiple cutting technology to carry out major reforms of the high-speed wire-moving control system.

Main functions and features of simple structure linear cutting machine:

1 - It adopts multiple cutting technology, intelligent control, primary input parameters and automatic switch of machining electrical gauge;

2 - The integrated design combines computer control, high-frequency power supply, driving power and electric equipment for machine tools;

3 - The dedicated digital control chip design ensures a stable and reliable high-frequency pulse output;

4 - The touch-type keyboard design makes it easy to operate and convenient to adjust and makes digital parameter display clear at a glance;

5 - The wire storage motor adopts frequency stepless governor, so that the motor runs stably and reliably;

6 - The totally-enclosed environmentally-friendly structure is attractive in terms of appearance;

7 - The high-grade linear guideway and the ball screw of Taiwan HIWIN are adopted.

Machine tool type PD-32SE/ST PD-40SE/ST PD-50SE/ST PD-63SE/ST

Worktable Size (W*L) of CNC machine tool control system 760×520mm 850×600mm 1000×750mm 1170×830mm

Max trip of X, Y-axis of the worktable (Y×X) 400×320mm 500×400mm 630×500mm 800×630mm

Max cutting thickness 250mm 250mm 300mm 300mm

Max load weight 300kg 500kg 800kg 1000kg

Max cutting efficiency 180mm²/min

Max processing current 7A

Optimum surface roughness First cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um

Cutting accuracy Line≤±0.0025mm, taper≤±0.01mm

Hop accuracy 0.01mm/0-200mm, 0.015mm/0-350mm, 0.02mm/0-500mm

Max cutting taper ±3°/80mm

Electrode wire diameter range (molybdenum wire) 0.12-0.25mm(standard configuration 0.18mm)

Driving mode of multiple cutting CNC Machine Tool X, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation

Cutting fluid box configuration High pressure slow wire filtration, volume 100L

Cutting fluid ratio Dick liquid mixed with pure water, concentration 8-12

Power consumption of complete machine ＜2KW

Power supply Three-phase four-wire 380VAC/50HZ

Host weight 1860kg 2160kg 2750kg 3450kg

Host outline size (L*W*H) 1570×1100×1700mm 1600×1220×1700mm 1850×1400×1800mm 2070×1655×2060mm

Packaging outline size (L*W*H) 1720×1300×1800mm 1850×1420×1800mm 2050×1600×1900mm 2340×2100×2160mm

More information please view here.
