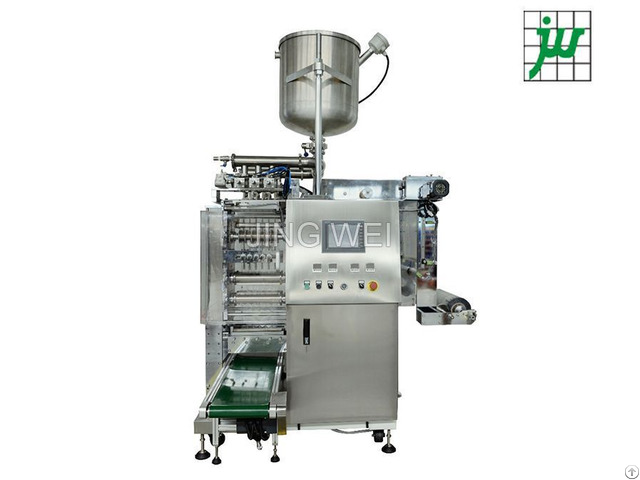

JW-DL500JW-DL700 Automatic Multi Lanes Filling and Packing Machine

It is multi lane packing machine for low viscosity material like tomato sauce, shampoo, laundry detergent, herbal ointment and etc.

It can be the varous pump for optioanl choice like LRV pump, stroke pump or Pneumatic pump and etc.

Advantage & Features

Features:

1 - Motion Servo control, stable running, simple maintenance.

2 - Filing: LRV pump, stroke pump or Pneumatic pump filling for optional choice, depend on the filling material.

3 - Machine material: SUS304.

4 - Four side sealing packing.

5 - Cold sealing.

6 - Coding machine, steel embossing nail for optional equipment to realized the real time coding.

7 - Equipped with conveyor to transfer the finished products to designated location.

8 - 3-8 lanes packing can be customized.

Packing Application

Various medium- low viscosity materials(4000-10000cps); tomato sauce, various seasoning sauces, shampoo, laundry detergent, Herbal ointment, sauce-like pesticides, etc.

Technical Parameters

pec Packing Speed 120-600 bags/min(Depends on the bag and filling material) Filling capacity 2～50ml(Depend on the pump spec) Pouch length 30～150mm Pouch width < =100mm(single layer) Sealing type Four sides sealing(Multi lanes) Sealing steps three steps(Multi lanes) Film width ≤500mm/700mm Max.

rolling diameter of film φ500mm Dia of film inner Rolling ¢75mm

Power 6kw, three-phase five line, AC380V, 50HZ

Compressed air 0.4-0.6Mpa, 500 NL/Min

Machine dimensions (L)1700mm x(W)1150mm x(H)2400mm(exclude conveyor

Machine weight 800KG

Remarks:

It can be customize for special requirements.
