Stainless Steel Compensator Joint For Axial Movement - China

Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: EHASE-FLEX

Model Number: EH-400SG

Type: Flange

Material: Stainless Steel

Technics: Welded

Connection: Flange

Shape: Equal

Head Code: Round

Application: HTM Fluid Pipeline

Product name: Expansion Joint

Standard: ANSI

Size: DN40-600mm

Certificate: FM Approved

Working Pressure: PN 16

Body material: SUS304/316/321

Packing: Plywood Case

Advantage: Multiply Bellows

Brand: EHASE-FLEX Supply Ability

Supply Ability: 100000 Piece/Pieces per Month Packaging & Delivery

Packaging Details

Carton Box, Pallet, or Plywood Case No Unacceptable Packaging Material or Bamboo Products been Used as Packing

Port Shanghai or Ningbo or Any Port in China Product Description

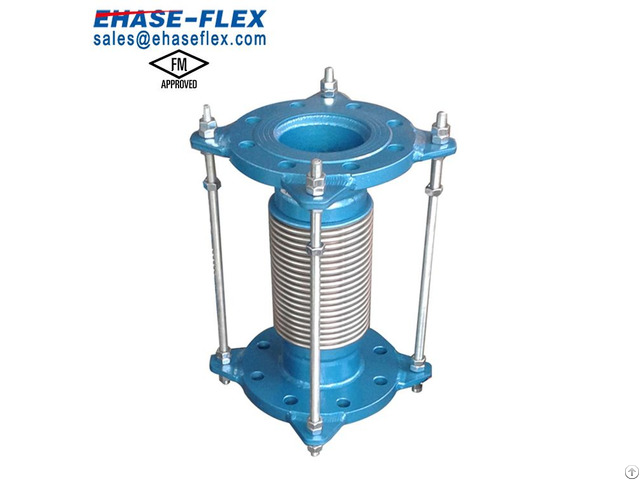

Corrugated Expansion Joint Application:

Expansion Joint Bellows Compensator is made of SUS304 material, multiply bellows with features of lower elasticity coefficient, high-temperature and high-pressure resisting, applied to absorb the expansion or compression of the HTM fluid pipeline.

It can make a long service life in piping system.

Construction:

Item Parts Material Remark

1 Bellows SUS304 SUS316/321

2 Flanges SS400 SUS304/316/321 3 Tube Ends SS400 SUS304

4 Internal Sleeve SUS304 SUS316

5 Tie Rods SS400 SUS304 Specification:

Nominal Bore Total Length Bellows O.D. Force to Compress Effective Area Axial Movement Working Pressure

mm ins mm mm kg cm² mm kg/cm2

40 1 1/2 350 58 75 17.6 +10 -40 16

50 2 350 76 110 30.4 +10 -40 16

65 2 1/2 350 92 205 43.8 +10 -40 16

80 3 350 106 261 62.8 +10 -40 16

100 4 350 133 303 107.7 +10 -40 16

125 5 350 163 630 162.9 +10 -40 16

150 6 350 190 1154 227.5 +10 -40 16

200 8 350 252 1905 385.3 +10 -40 16

250 10 350 315 1932 670.1 +10 -40 16

300 12 350 366 2353 923.5 +10 -40 16

350 14 400 398.1 2192 1102 +10 -40 16

400 16 400 462.8 2689 1464 +10 -40 16

500 20 450 564 3322 2235 +10 -40 16

600 24 500 666 3956 3167 +10 -40 16

*Specifications stated above are the standard.

We can design and manufacture according to customer's requirement

*Threads: NPT, BSPP, BSPT.

Features

1 - Excellent Welding Technology, like a fish swimming in water.

2 - Omega Bellows, More flexible and longer service life.
