Type Pdf Double Polyester Fiber Braid Reinforced Silicone Hose - China
price: 50.00 Dollar US$

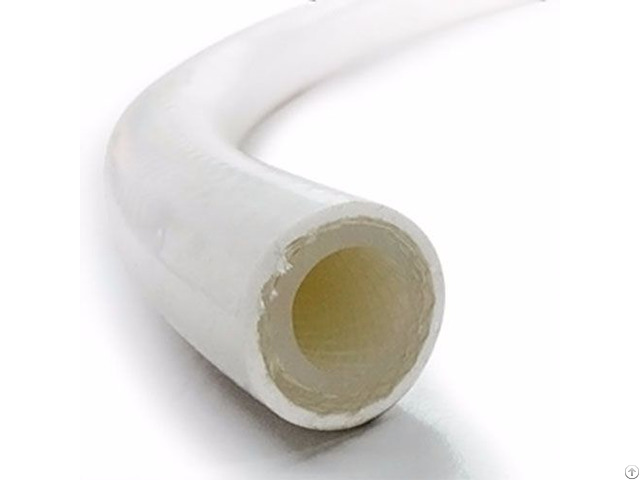

Double polyester Fiber Braid Reinforced Silicone Food Hose
Construction: Type PDF is manufactured from High purity platinum cured Silicone with double polyester fiber reinforcement.
Temp.
Range: -60°C and 200°C.
Colour: White (Coloured covers available)
Applications: For transporting liquids at high pressure.
Suitable for CIP and SIP cleaning.
Certification: FDA, USP, BFR, USDA, ISO 10993
Length: Standard maximum length is 20 meters, for a longer length, please contact us.
** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
Part no.
ID OD Bending radius Work pressure Bursting pressure Vacuum in.
mm mm mm bar bar bar
PDF005 3/16" 4.8 13 27 25 75 0.91
PDF006 1/4" 6.4 16 30 24 72 0.91
PDF008 5/16" 7.9 18 37 23 69 0.91
PDF010 3/8" 9.5 20 45 22.5 67.5 0.85
PDF013 1/2" 12.7 23 51 20 60 0.83
PDF016 5/8" 15.9 27 62 18 54 0.81
PDF019 3/4" 19 30.5 76 16.5 49.5 0.72
PDF022 7/8" 22 33 100 14 42 0.45
PDF025 1" 25.4 38 118 12.5 37.5 0.35
PDF032 1-1/4" 32 46 180 10 30 0.14
