Type Sp 4 Layer Polyester Reinforced Silicone Hose - China

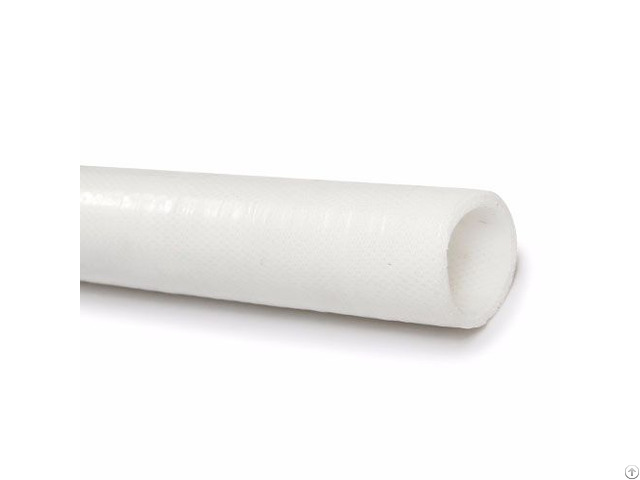

4 Layer Polyester Reinforced Silicone Hose

• Construction:

• Type SP is manufactured from High purity platinum cured Silicone with 4 layer polyester reinforcement.

• Temp.

Range: -60℃ and 200℃.

(+260℃ on request)

• Color: Translucent (Colored covers available)

• Applications of flexible silicone hose:

For transporting liquids at medium pressure where a closed Bending radius is not required.

It is not recommended for Vacuum.

Suitable for CIP and SIP cleaning.

• Certification: FDA, USP, BFR, USDA, ISO 10993

• Length: Standard length is 4 or 6 meters

**PRESSURE DECREASE BY 1% FOR EVERY 1℃ ABOVE 100℃

Part no.

ID OD Work pressure Bursting pressure in.

mm mm bar bar

SP006 1/4" 6.4 16.4 11.5 34.5

SP008 5/16" 7.9 18 10.5 31.5

SP010 3/8" 9.5 19.5 9.5 28.5

SP013 1/2" 12.7 22.7 8.5 25.5

SP016 5/8" 15.9 25.9 8 24

SP019 3/4" 19 29 7.5 22.5

SP022 7/8" 22 32 7 21

SP025 1" 25.4 35.4 6.5 19.5

SP032 1-1/4" 32 42 5.5 16.5

SP038 1-1/2" 38 48 5 15

SP045 1-3/4" 45 55 4.5 13.5

SP050 2" 50.8 60.8 4 12

SP063 2-1/2" 63.5 73.5 3.5 10.5

SP076 3" 76.2 86.2 2.5 7.5

SP089 3-1/2" 89 99 2 6

SP102 4" 102 112 1.7 5.1
