Cast Iron Double Eccentric Butterfly Valve - China

price: check with company for price

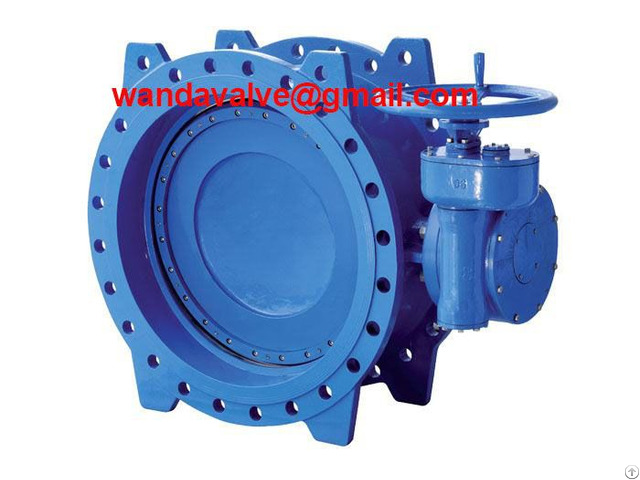

Cast Iron Double Eccentric Butterfly Valve

Products Photos Catalog Cast Iron Double Photos Catalog

Specification Details Design Std: EN 1074, EN593

Size: DN100--DN2000

Pressure Rating: PN10, 16, 25 or 40 bar according to construction

Seat: stainless steel, EPDM, NBR

Face to Face: EN 558-1 Series 14, DIN3202 F4

Flange Drilling: ANSI / EN1092-2 / AS4087 / AS2129

Replaceable seat, no wrenkling possibility

Working temperature: –15°C / 80°C

Valve Description Double-eccentric butterfly valves are industrial valves, which are designed to fully open or close the passage of the working medium flowing through a pipeline.

They can also be used for flow-control purposes.

However, a 100% tightness of the valve cannot be guaranteed in a long-term use for control purposes


Company Contact:


  • Phone: +8657181370072

  • Address: Gaoxin Avenue, Yongqiang Rd. Longwan Area, Wenzhou, China, Wenzhou , Zhejiang , China

  • Email: Email

Published date: December 1, 2017

  • Business Description: Wandavalve is one of the most important manufacturers of water valves in the China with experience dating back over 20 years.

    Its success story began in 1994 when Steven Li founded a small workshop in Wenzhou, China.

    Presently, the scope of Wanda Valve supply products including following(but not limited below): -

    Wafer butterfly valve, Lug Butterfly valve, Flanged Butterfly valve

    Resilient seat gate valve, Metal seat gate valve

    Cast Iron Ball Valve, Cast Steel Ball valve, Stainless Steel Ball Valve

    Cast Iron Globe Valve, Cast Steel Globe valve, Stainless Steel Globe Valve

    Cast Iron Check Valve, Cast Steel Check valve, Stainless Steel Check Valve

    DIN Y Strainer, ANSI Y Strainer

    Our products are widely used in the irrigation, potable water and waste water systems and infrastructure equipment fields, oil gas, chemicpetrol etc.
