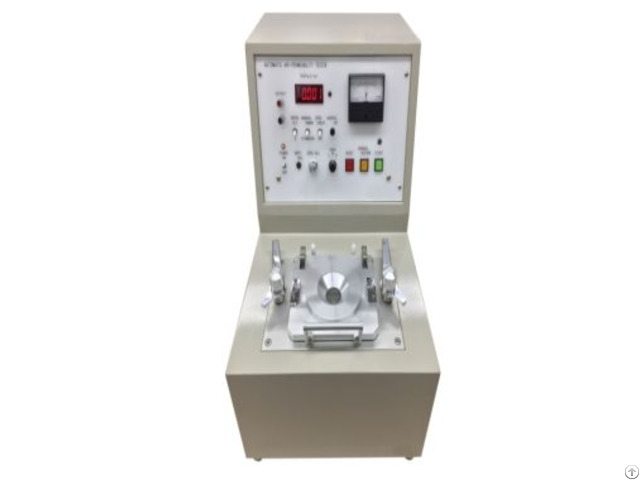

Air Permeability Tester Std F8 - China

The Air Permeability Tester is designed to quickly and accurately measure the breathability and permeability of a wide range of samples, from those with high permeability, such as stockings, to those with low permeability, such as synthetic leather.

Samples can be mounted in just a few seconds using the handle, and measuring is also incredibly simple.

Standards

ISO 9237 GB/T 5453 DIN 53887 ASTM D737 AFNOR G07-111 Features

Highly accurate measurement using the constant ventilation method The STD-F8 allows measurement of ventilation resistance.

Compared with commonly used measuring methods, the STD-F8 is capable of highly accurate measurements.

In addition, measurements can also be obtained with minute amounts of ventilation (measurement conditions similar to ventilation conditions when clothes are worn).

Parameter

Product Name Air Permeability Tester

Dimensions (W × D × H) *approx.

Measuring unit: 330 × 495 × 430 mm

Weight *approx.

Measuring unit: 25 kg

Power supply, Frequency 100VAC, 50/60Hz

Interface Data logger output terminal

Sample size 50 × 50 to 100 × 100 mm (standard)

Thickness: 1 mm (max.

)

Other sample sizes are able to be used with optional accessories.

Optional Accessories

Vent pressing plate

(20 πcm², 0.2 πcm²) Vent sizes are variable.

Attachment provided for thick samples To thickness 40 mm Please contact us for more information.
