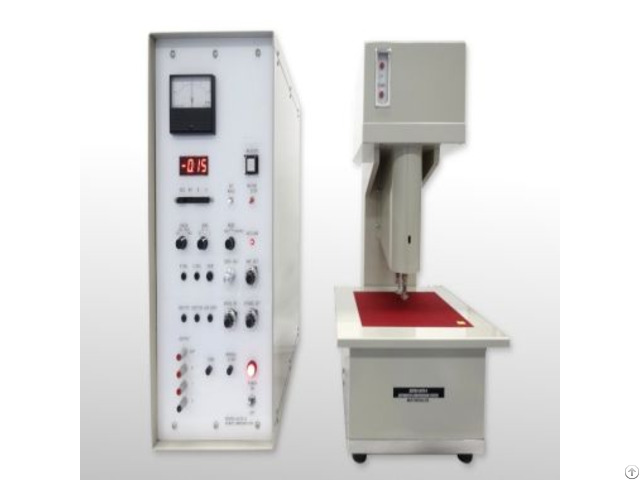

Compression Tester Std Fb3 A - China

The Compression Tester analyzes hand movements-particularly, pushing with a finger-performed by artisans and professionals when judging a fabric' s texture.

This device performs this movement mechanically, making it possible to obtain objective numerical data.

Obtainable data includes compression rigidity, compression energy, and recoverability for such targets as general fabric, cloth, paper, and non-woven fabric.

Compression characteristic data is useful for determining fullness and softness, smoothness, anti-drape stiffness.

Features

Measurement can be performed with a minimum load detection of 10 gf/cm² for extremely small objects.

Parameter

Product Name Compression Tester

Dimensions (W × D × H) *approx.

Measuring unit: 285 × 405 × 500 mm

Amplifier: 230 × 450 × 500 mm

Weight *approx.

Measuring unit: 40 kg

Amplifier: 20 kg

Power supply, Frequency 100VAC, 50/60Hz

Interface KES-USB (optional)

PC (optional) *1

Data logger output terminal

OS Windows 7/8/8.1/10

Sample size Square with a side of 100 to 200 mm (standard)
