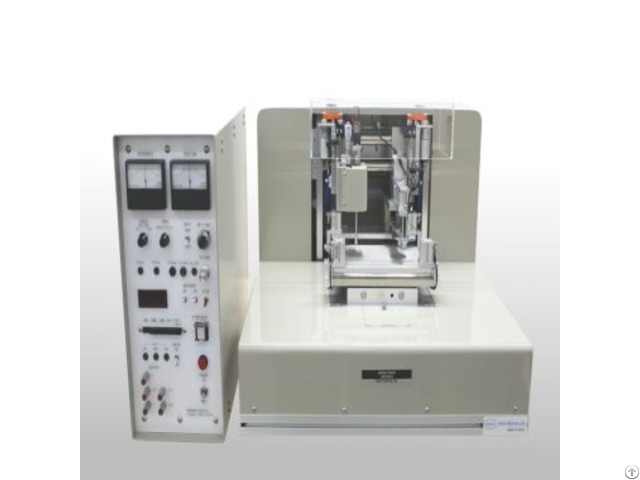

Surface Performance Tester Std Fb4 A - China

Introduction

The Surface Tester analyzes finger movements-particularly, strokes-performed by artisans and professionals when judging a fabric’s texture.

This device performs this movement mechanically, making it possible to obtain objective numerical data.

Obtainable data includes frictional coefficients, fluctuations of frictional coefficients, and surface roughness for such targets as general fabric, cloth, paper, non-woven fabric, and film.

Surface friction and roughness characteristic data is useful for determining fullness and softness, smoothness, crispness.

Features

Sensor that imitates fingertips.

The sensor unit' s design features a load and surface treatment that mimics a fingertip, allowing for quantification similar to that of the human fingertip.

Specification

Product Name Surface Tester

Dimensions (W × D × H) *approx.

Measuring unit: 550 × 520 × 420 mm

Amplifier: 180 × 400 × 400 mm

Weight *approx.

Measuring unit: 50 kg

Amplifier: 10 kg

Power supply, Frequency 100VAC, 50/60Hz

Interface KES-USB (optional)

PC (optional) *1

Data logger output terminal

OS Windows 7/8/8.1/10

Sample size 200 × 200 mm (standard)

Thickness: 2 mm (max.

)
