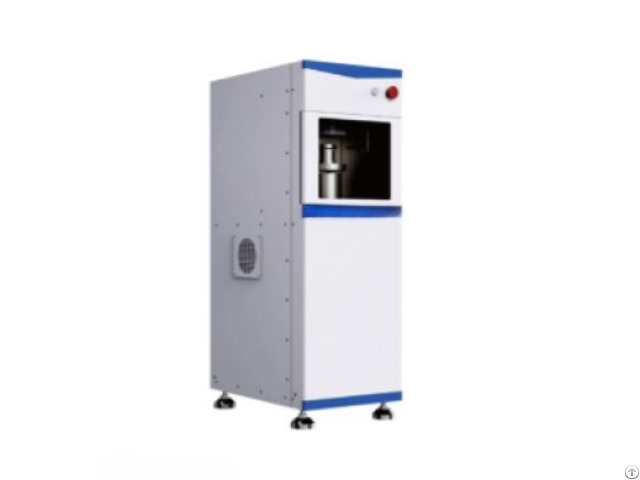

Battery Powder Resistivity Tester - China

Standards

YS/T 587.6-2006 GB/T 24525-2009 GBT 30835-2014 Product Advantages

Unmatched Measurement Flexibility Dual-probe compatibility: Switch seamlessly between four-point probe (for low-resistance materials) and two-point probe (for high-resistance applications) to adapt to diverse powder types.

Ultra-wide ranges: Handle pressures up to 350 MPa and resistances up to 1200 MΩ, covering R&D needs for conductive to insulating materials.

Intelligent Automation Fully automated software with customizable parameters (pressure, duration, sampling rate) enables one-click testing, reducing human error and accelerating workflows.

Comprehensive Data Insights Real-time monitoring and export of 9 critical parameters: Pressure, stress, temperature, humidity, thickness, resistance, resistivity, conductivity, and tapped density.

Generate dynamic curves and auto-save reports for traceability.

Versatile Testing Modes Three operational modes: Pressure step, single-point unloading, and steady-state unloading to simulate real-world compaction scenarios.

Certified Calibration Pre-installed NIST-traceable calibration blocks (thickness and resistance) ensure measurement credibility and simplify third-party audits.

Product Features

High-Precision Control: Advanced pressure regulation (±0.5% FS accuracy) and laser-based thickness sensing (±1 μm resolution).

Material Compatibility: Optimized for lithium/sodium-ion battery cathodes/anodes (LCO, NCM, LFP, graphite), conductive additives, solid-state electrolytes, and micron-scale powders.

Environmental Integration: Built-in sensors for temperature (-20°C to 150°C) and humidity (10%–95% RH) compensation.

Data Management: Export test results in CSV/PDF formats or integrate via API with LabVIEW, MATLAB, or Python for advanced analytics.

Ergonomic Design: Compact footprint with touchscreen interface and safety interlocks for hazardous material testing.

Accessories

Main Unit: Powder Resistivity Meter with integrated safety enclosure.

Software Suite: Multi-language GUI with data analysis tools.

Probes: Two interchangeable probe sets (four-point and two-point).

Calibration Kits: Thickness calibration block (certified by accredited lab).

Resistance standard (10 Ω, 1 kΩ, 100 kΩ).

Testing Jigs: Customizable powder cells for varying sample volumes.

User Manual: Multilingual PDF with maintenance guidelines.

Technical Parameters

Parameter Specification

Pressure Range 0–350 MPa (adjustable increments)

Resistance Measurement 1 μΩ–1200 MΩ (10 nΩ resolution)

Thickness Accuracy ±1 μm (laser sensor)

Temperature Range -20°C to 150°C (±0.5°C accuracy)

Humidity Range 10%–95% RH (±3% accuracy)

Data Interface USB 3.0 - Ethernet, RS-232

Power Supply 100–240 V AC, 50/60 Hz

Dimensions (W×D×H) 450 × 550 × 600 mm
