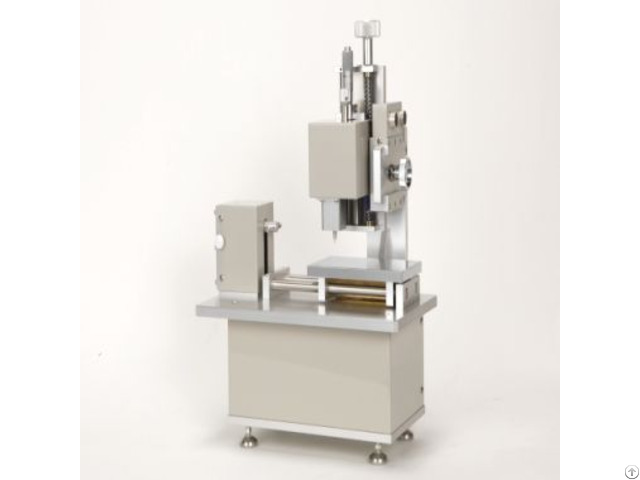

Kes Sesru Surface Roughness Friction Tester - China

The Roughness/Friction Tester analyzes hand movements-particularly, strokes-performed by artisans and professionals when judging a fabric' s texture.

The device performs this movement mechanically, making it possible to obtain objective numerical data while offering more enhanced versatility over the STD-FB4-A Surface Tester.

In addition to average frictional coefficient and fluctuation of average frictional coefficient, surface roughness data is obtained.

The device is also suitable for light texture conditions and hair measurement.

Standards

Compatible with standards of ISO1997, ANSI and JIS2001 Features

Sensor that imitates fingertips The sensor unit’s design features a load and surface treatment that mimics a fingertip, allowing for quantification similar to that of the human fingertip.

Parameter

Product Name Roughness/Friction Tester

Dimensions (W × D × H) *approx.

Measuring unit: 320 × 200 × 390 mm

Amplifier: 180 × 400 × 400 mm

Weight *approx.

Measuring unit: 10 kg

Amplifier: 12 kg

Power supply, Frequency 100VAC, 50/60Hz

Interface STD-USB (optional)

PC (optional) *1

Data logger output terminal

OS Windows 7/8/8.1/10

Sample size 30 × 270 mm (standard)
