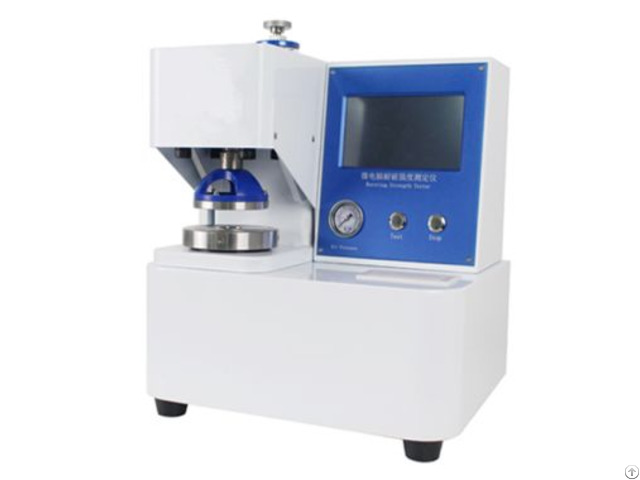

Breaking Strength Testing Machine - China

Standard

IEC 61730-2: Photovoltaic (PV) Module Safety Qualification – Requirements for Testing UL 61730: Safety Standard for Photovoltaic Modules CE Certification (Conformité Européenne) Product Advantages

Ultra-Wide Pressure Range 250–5.600 kPa (36–812 psi): Tests glass, backsheets, and encapsulants from thin-film to dual-glass modules.

0.01 kg/cm² Resolution: Captures micro-fractures before catastrophic failure.

Precision Engineering 5 kg/cm² Adjustable Holding Pressure: Simulates wind/snow loads per IEC 61730-2 - Multi-Unit Display: Switches between kPa, psi, and kg/cm² for global compliance.

Safety First Dual Overpressure Protection: Mechanical relief valve + electronic cutoff at 5.600 kPa.

Explosion-Proof Chamber: Reinforced acrylic window for safe failure observation.

User-Centric Design 7” Touchscreen HMI: Preloaded IEC/UL test sequences with auto-hold functions.

Voice-Guided Setup: Step-by-step audio prompts for operators.

Product Features

Quick-Change Fixtures: Adapts to 2–20 mm module thicknesses.

Dynamic Pressure Control: Ramp rates from 1 kPa/s to 100 kPa/s.

Self-Calibrating System: Auto-tare and linearity checks before each test.

Rust-Resistant Frame: 304 stainless steel construction with epoxy coating.

Portable Design: 60 kg weight with integrated handles for lab-to-line mobility.

Accessories Included

Testing Kit: 1x Specialized Clamping Fixture (for 2–20 mm modules).

2x High-Temperature Rubber Membranes (300°C rated).

5x Aluminum Foil Calibration Discs.

Consumables: 1x 85% Glycerin Solution Bottle (for hydraulic calibration).

10x Disposable Dust Filters.

Documentation: Multilingual Quick-Start Guide (printed + digital).

Compliance Certificates for IEC/UL Standards.

Technical Parameters

Parameter Specification

Pressure Range 250–5.600 kPa (36–812 psi)

Resolution 0.01 kg/cm² (1.42 psi)

Holding Pressure 5 kg/cm² (71 psi) adjustable

Air Source 6 kg/cm² (87 psi) min (customer-provided)

Control Accuracy ±1% FS (full scale)

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 560mm (W) × 470mm (D) × 550mm (H)

Weight 60 kg (net)
