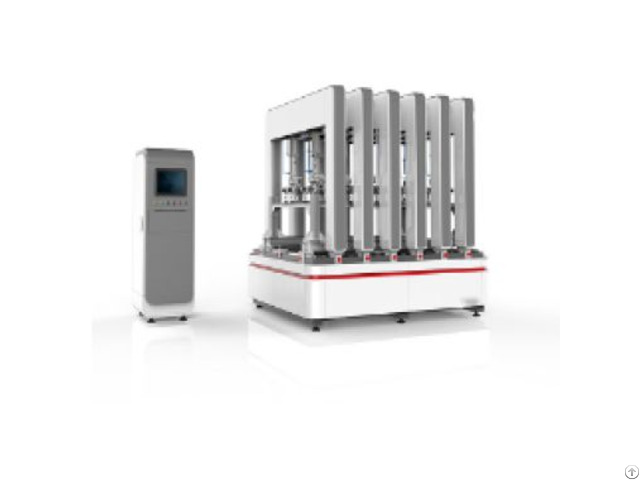

Mechanical Load Testing Apparatus For Pv Modules - China

Standard

IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval IEC 61646: Thin-Film Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval IEC 62782: Dynamic Mechanical Load Testing for Photovoltaic Modules UL 1703: Flat-Plate Photovoltaic Modules and Panels CE Certification (Conformité Européenne) Product Advantages

Multi-Standard Compliance 5.400 Pa Forward / 2.400 Pa Reverse Loading: Replicates snow/wind loads per IEC 62782 - 1.000 Pa Dynamic Testing: 1.000-cycle fatigue simulation for hail/debris impact.

Ultra-Precise Control 0.1N Force Feedback: Low-friction cylinder ensures ±5% pressure accuracy.

7+3s Cycle Timing: Mimics real-world pulsating wind loads.

Automated Testing Programmable Cycle Count: 1–99.999 cycles with auto-stop at failure.

AI-Powered Failure Detection: Real-time EL imaging correlation for crack analysis.

Safety First Emergency Shutoff: Dual redundant safety circuits with load cell override.

Overload Protection: 6.000 Pa max pressure cutoff.

Modular Design Quick-Change Fixtures: Adapts to framed, frameless, and flexible PV modules.

Expandable Test Area: Up to 3.0m × 2.0m for large-format modules.

Product Features

Dual-Mode Operation: Static/dynamic load testing with auto-switching.

10” Touchscreen HMI: Preloaded IEC/UL test sequences with customizable pressure profiles.

Remote Monitoring: Wi-Fi/Ethernet connectivity with SMS/email alerts for failures.

Self-Calibrating System: Auto-tare and linearity checks before each test.

Rust-Resistant Frame: 304 stainless steel construction with epoxy coating.

Accessories Included

Testing Kit: 4x PV module clamping fixtures (adjustable for 16–40 mm frames).

10x load distribution pads (anti-skid rubber).

Calibration & Safety: NIST-traceable pressure gauge.

Safety harness kit for large modules.

Maintenance Kit: Spare O-rings and cylinder seals.

Machine cleaning solution (non-corrosive).

Technical Parameters

Parameter Specification

Test Area 2.8m (L) × 1.8m (D) × 1.95m (H)

Forward Load 5.400 Pa (adjustable)

Reverse Load 2.400 Pa (adjustable)

Dynamic Load 1.000 Pa, 1.000 cycles (7s+3s timing)

Pressure Accuracy ±5% of setpoint

Force Sensor 0.1N resolution, 10 kN capacity

Power Supply 230V AC, 50/60Hz (single-phase)

Air Supply 6–8 bar (clean/dry air required)

Weight 1.200 kg (net) / 1.500 kg (gross)
