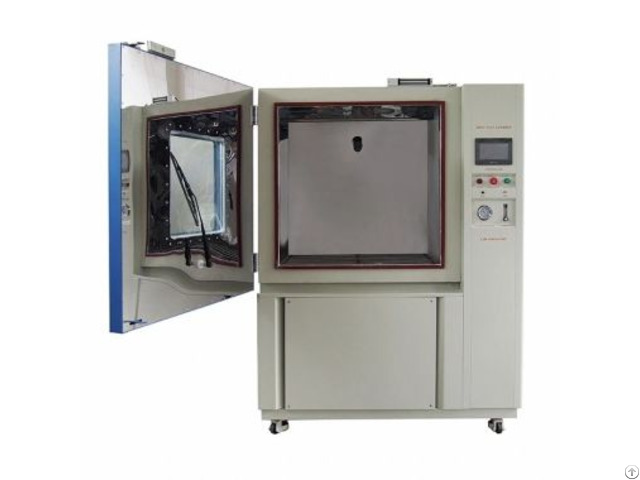

Ip Dust Test Chamber - China

Features and Benefits

1 - As one of leading dust chamber suppliers, our Dust Test Chambers are from 800L, 1000L, 1500L to 2000L, a variety of models are available.

In addition, the size and performance can be customized according to the customer's needs.

2 - A wide range of Dust Test Chambers meet various standards such as IEC60529 IP5X, IP6X and MIL-STD-810 - 3 - The dust ingress test chamber is easy to operate, can be programmed according to the requirements for automatic operation, can be connected to the computer and the laboratory operating system, so as to achieve integrated and remote control.

4 - After effectively communicating with the customer about the test requirements, the model can be accurately determined and the product can be delivered quickly.

Specifications

Model

STD DI-800 STD DI-1000 STD DI-1500 STD DI-2000 Internal Dimension (mm)

800*1000*1000 1000*1000*1000 1000*1500*1000 1000*2000*1000 Overall Dimension (mm)

1040*1450*1960 1330*1450*1960 1330*1950*1990 1330*2450*1990 Useful Volume (L)

800 1000 1500 2000 Temperature Range

Ambient ~ +50℃ Humidity Range

< 30% RH Normal Wire Diameter

50um Nominal Width of a Gap Between wires

75um Fight Time

0 ~ 99H59M Blowing Time

0 ~ 99H59M Specimen Power Outlet

Dust-proof socket 16A Controller

Programmable color LCD touch screen controller, Ethernet connection Safety Device

Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection Exterior Material

A3 Steel Plate with protective coating Interior Material

SUS304 stainless steel Standard Configuration

Sample shelf, dust wiper, talcum powder(5kgs) Power

AC380V 50Hz
